Einleitung
This guide will show how to remove the speakers for the Lenovo 100s Chromebook-11IBY. This removal will allow you to replace or upgrade the speakers for your laptop.
Werkzeuge
-
-

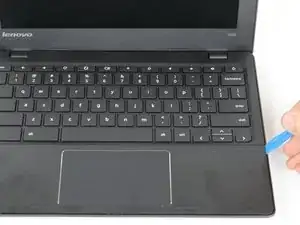

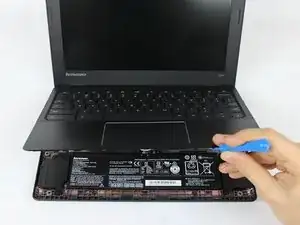

Turn your laptop back over, open it, and use the plastic opening tool on the recessed notch to gently pry each side and lift the keyboard plate up.
-
-
-

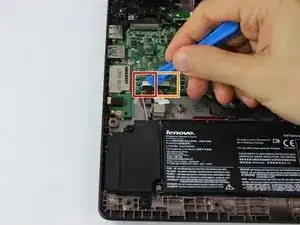

Locate the two sticker-like connecting wires (for the keyboard and touchpad).
-

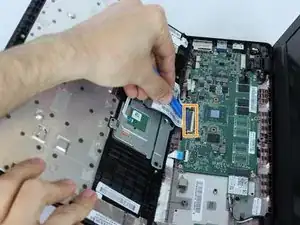

Carefully unplug the orange circled (keyboard) wire from the keyboard plate.
-

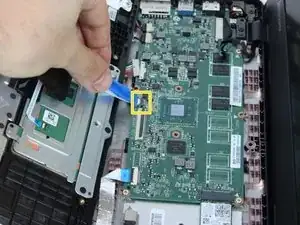

Carefully unplug the yellow circled (touchpad) wire from the keyboard plate.
-
Then lift the keyboard plate up and place it to the side.
-
-
-

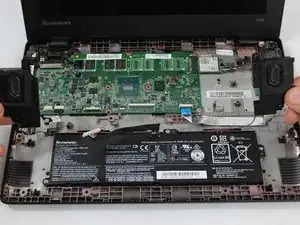

Locate the cable attaching the left speaker to the motherboard and unplug it by hand.
-
Then unplug the cable attaching the right speaker by hand.
-
-
-

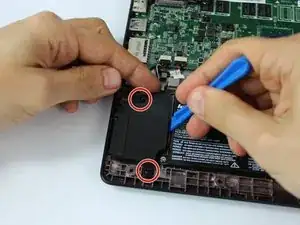

Carefully pry the speaker up and free of the two notches holding it in place.
-

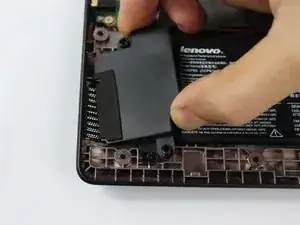

Remove the speaker.
-
To reassemble your device, follow these instructions in reverse order.
