Lenovo 100s Chromebook-11IBY Webcam Replacement

Geschrieben von: Milton Perez
  • Kommentare: 0
Lenovo 100s Chromebook-11IBY Webcam Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

6 - 9 Minuten

Einleitung

This guide will show how to remove the webcam for the Lenovo 100s Chromebook-11IBY. This removal will allow you to replace or upgrade the webcam for your laptop.

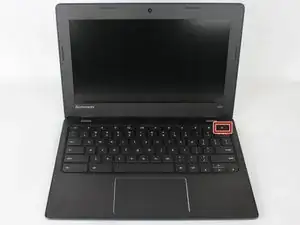

  1. jZMswMSZKQg2uvBd

    • Ensure your device is turned off and unplugged.

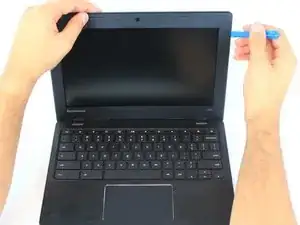

  2. dcVSKEQ3bGENYSBf

    • Use the plastic opening tool on the recessed notch to gently pry each side of around the screen up.

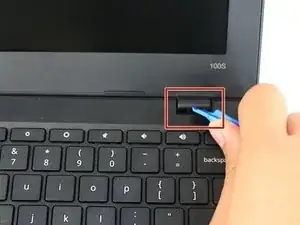

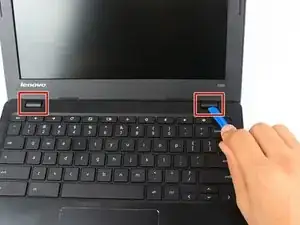

  3. leoPMPuMopvLK6RK
    leoPMPuMopvLK6RK
    UkaSSTBmH5DIe2Bm

    • Carefully pry up and underneath both the (left & right) hinges of the screen cover.

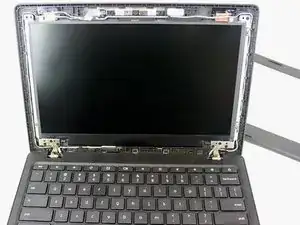

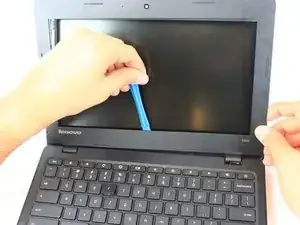

  4. cZxToFWab1RT4TTC
    cZxToFWab1RT4TTC
    dUqC6CCRuMeM3Skk

    • Use the plastic opening tool on the inside of the screen plate and again on the sides to gently remove it.

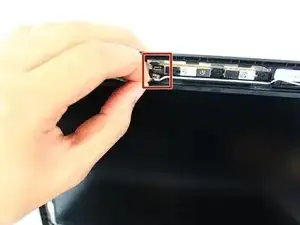

  5. pDFvFkwTDCuh3Evj

    • Gently unplug the wire connecting the webcam to the laptop.

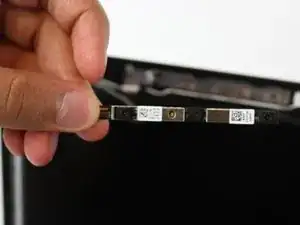

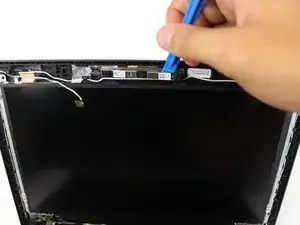

  6. IPnFVZU4AXGnWDjZ
    IPnFVZU4AXGnWDjZ
    PvAvBUfUWvVumP5e

    • Using the plastic opening tool, gently lift the webcam panel from the screen. Then remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
