Lenovo 300e Chromebook 2nd Gen Battery Replacement

Geschrieben von: Zachary Costello
  • Kommentare: 0
Lenovo 300e Chromebook 2nd Gen Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide shows you how to replace the battery in the Lenovo 300e Chromebook 2nd Gen Laptop. This guide is moderate difficulty as you will only be unscrewing, remove the backing and disconnecting the battery cable

It's highly recommended that you use an Anti-Static Wrist Strap for this guide as you will be working on exposed electronics.

  1. hMwtNcOhXd1WiEnM
    hMwtNcOhXd1WiEnM
    d2quXLGGjEOdih3L
    kbESd2PfRaKP3eqX

    • Make sure you power off your Chromebook first as you will be disconnecting the battery!

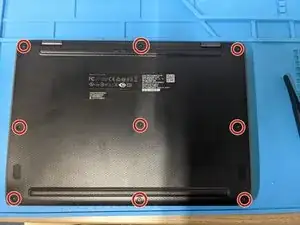

    • Remove all 9 screws on the back of the chromebook

    • The screws circled on this Chromebook's back casing are all identical!

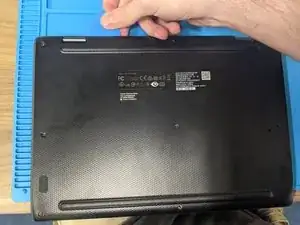

    • Use an opening tool such as a spudge and carefully work your way around the laptop to remove the back cover

  2. iJbI3CDPDGOF3S6Q
    iJbI3CDPDGOF3S6Q
    hDypKSbQqiGWvcIx

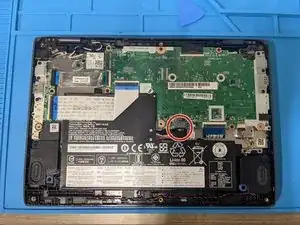

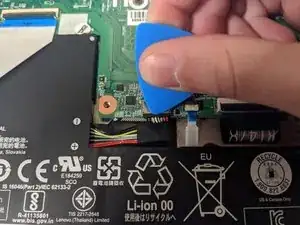

    • Remove the black tape covering the connector, then using a spudge tool, carefully unplug the battery from the motherboard

  3. luqvGybXa2BhqsuG
    luqvGybXa2BhqsuG
    nLdUgZyfo4BpVEHY

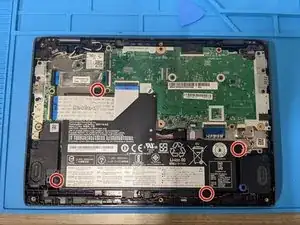

    • Remove the 4 screws holding in the battery and set them aside

    • Make sure to separate the screws for the battery from the screws for the backing that were removed in the first step!

Abschluss

To reassemble your device, follow these instructions in reverse order.
