Lenovo 300e Chromebook Left and Right Click Buttons Replacement

Geschrieben von: Merit Kuykendall
  • Kommentare: 0
Lenovo 300e Chromebook Left and Right Click Buttons Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 - 7 Minuten

Einleitung

This guide will show how to remove the mouse pad buttons from the Chromebook. Although not difficult, it does require removal of the battery, so make sure the battery is removed before proceeding to this guide.

  1. T6rPHkemtXotLHCX
    T6rPHkemtXotLHCX
    ItFUKyNcPgJe5Sqs
    FCGAeOttGN3QRbFJ

    • Remove eleven 5 mm screws from the back of the computer using a Phillips #2 screwdriver.

  2. oVAAqOV5WHgRaXNs
    oVAAqOV5WHgRaXNs
    mNIASZLBcLwhhEsf
    5dHXEJbBXThAmnZ2

    • Use a spudger along the edge of the Chromebook to gently remove the back cover of the laptop.

  3. 3GNIFRkxTGc3OeeC
    3GNIFRkxTGc3OeeC
    4S6uVv1XuNyfXpiS
    jIfqw2GlUENTiY2y

    • Remove six 3 mm screws from the battery with a Phillips #2 screwdriver.

  4. k5L5YNbUc1GaP3Cv
    k5L5YNbUc1GaP3Cv
    AToj6AUWlabdVqwB
    5x1rDv65KOCsBTaL

    • Disconnect the wiring harness that connects the battery to the motherboard.

    • Lift the battery up and out of the laptop.

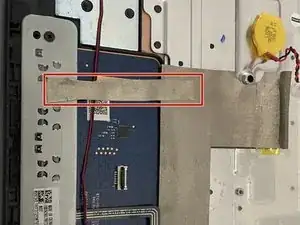

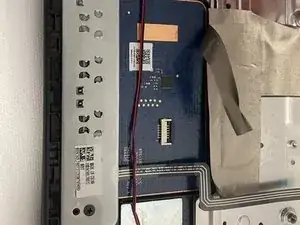

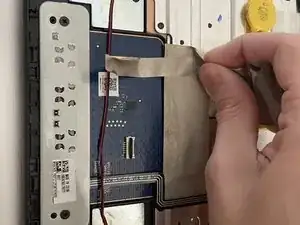

  5. u4pYkfKVkPs2hVMS
    u4pYkfKVkPs2hVMS
    qCBKQTUmRVYgoY1S
    SVMyc4AdHHQHcWAf

    • Disconnect the metallic electrical tape by gently pulling back away from the keypad.

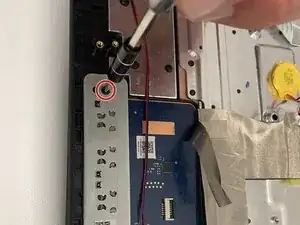

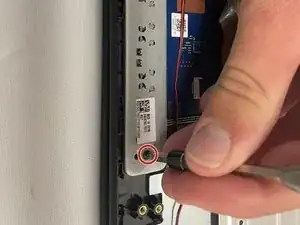

  6. DPoxggJDUL12ytJE
    DPoxggJDUL12ytJE
    Ing2gGkpYsjG1lBT

    • Remove two 5 mm screws from the metal plate using a Phillips #2 screwdriver.

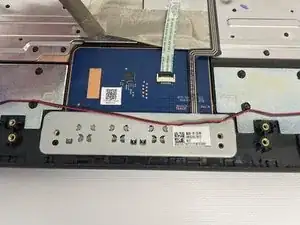

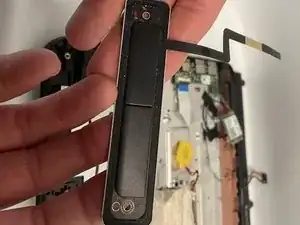

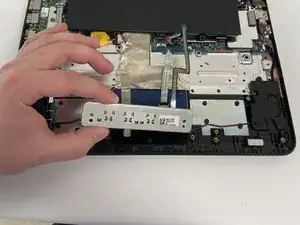

  7. 3WI6llGGWyhHQYtM
    3WI6llGGWyhHQYtM
    VELNCfTH5dDxojPH
    BVXaWvr121VepeGB

    • Remove the left and right click buttons from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
