Lenovo 500e Chromebook 2nd Gen Speakers Replacement

Geschrieben von: Nicolas Lidinsky
  • Kommentare: 3
Lenovo 500e Chromebook 2nd Gen Speakers Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

This guide will show you how to replace the speakers in the Lenovo 500e 2nd Gen Chromebook, model number: 81MC005AUS. The speaker allows the user to hear the sounds played from the device. If the sound is not working or the sound quality is poor, check out our troubleshooting page.

  1. SoeFw2LWLXtBAABl

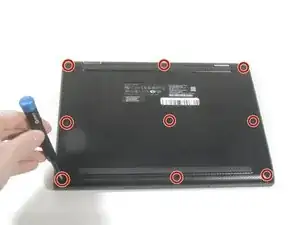

    • Remove nine 6 mm screws from the bottom cover of the laptop using a Phillips #0 screwdriver.

    A Philips #1 might work better, less risk of stripping the screw head

    Fritz Borrelnootje -

  2. oy3KEAT4TpODtExE
    oy3KEAT4TpODtExE
    dVZaLXPWuDUANPqI

    • Remove stylus from the lower left corner of the back panel.

  3. nigtXIYFJFKZnqSZ
    nigtXIYFJFKZnqSZ
    Xsj3vgrPsvAt3Wkg

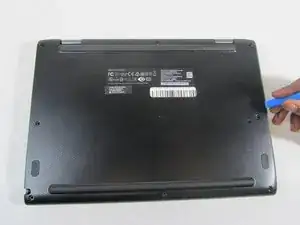

    • Go along the edge of the back panel with an iFixit opening tool until it pops loose.

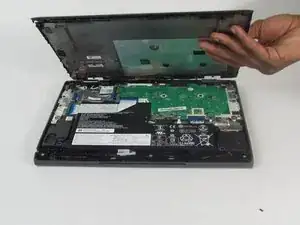

    • Remove the back panel from the laptop.

  4. wP6MKQoBsQPlqPwX

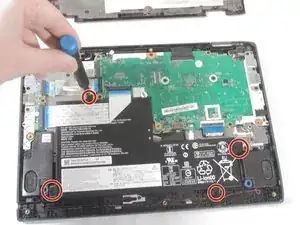

    • Remove the four 4 mm Phillips #00 screws holding the battery in.

    Removing the battery is not necessary for removing/replacing the WiFi card. However, as a precaution, do unplug the battery as shown in Step 5

    Fritz Borrelnootje -

  5. qUlttjsrIQGyK3F1
    qUlttjsrIQGyK3F1
    ZotFu1kDW4DQP3YG

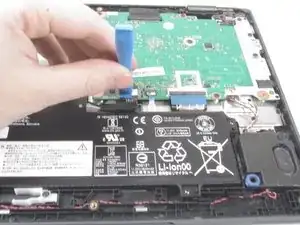

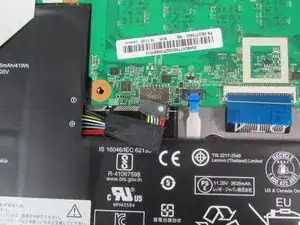

    • Use the iFixit opening tool to unplug the battery from the motherboard.

    • Potential for device damage: Make sure to be gentle while removing the wire.

  6. xSuPNY5pHBdUrEPt

    • Remove the battery from the laptop.

    Removing the battery is not necessary for removing/replacing the WiFi card. However, as a precaution, do unplug the battery as shown in Step 5

    Fritz Borrelnootje -

  7. EcEODlaZlUbApigV
    EcEODlaZlUbApigV
    QNQwXWYsdWAR3YsR

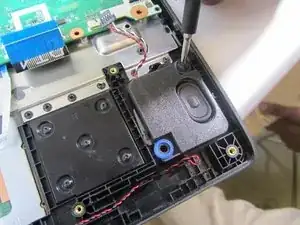

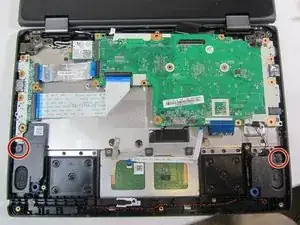

    • Remove the two 4 mm screws (one on each speaker) using a Phillips #00 screwdriver.

  8. k5HabiYdifBjpBvW
    k5HabiYdifBjpBvW
    kMgjLfRuUE6rjPRV

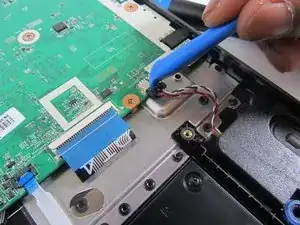

    • Use the iFixit opening tool to detach the right speaker cable from the motherboard.

  9. CqENOPOjUGHBT1cA

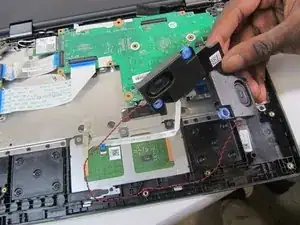

    • Remove both speakers by gently pulling them out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
