Lenovo 500e Chromebook 2nd Gen Wi-Fi Card Replacement

Geschrieben von: Nicolas Lidinsky
  • Kommentare: 3
Lenovo 500e Chromebook 2nd Gen Wi-Fi Card Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

This guide will show you how to replace the Bluetooth 5.1 Wi-Fi card in the Lenovo 500e 2nd Gen Chromebook, model number: 81MC005AUS. The Wi-Fi card connects the laptop to the internet and other devices. If your Bluetooth or Wi-Fi is not working properly, check our troubleshooting page.

  1. SoeFw2LWLXtBAABl

    • Remove nine 6 mm screws from the bottom cover of the laptop using a Phillips #0 screwdriver.

    A Philips #1 might work better, less risk of stripping the screw head

    Fritz Borrelnootje -

  2. oy3KEAT4TpODtExE
    oy3KEAT4TpODtExE
    dVZaLXPWuDUANPqI

    • Remove stylus from the lower left corner of the back panel.

  3. nigtXIYFJFKZnqSZ
    nigtXIYFJFKZnqSZ
    Xsj3vgrPsvAt3Wkg

    • Go along the edge of the back panel with an iFixit opening tool until it pops loose.

    • Remove the back panel from the laptop.

  4. wP6MKQoBsQPlqPwX

    • Remove the four 4 mm Phillips #00 screws holding the battery in.

    Removing the battery is not necessary for removing/replacing the WiFi card. However, as a precaution, do unplug the battery as shown in Step 5

    Fritz Borrelnootje -

  5. qUlttjsrIQGyK3F1
    qUlttjsrIQGyK3F1
    ZotFu1kDW4DQP3YG

    • Use the iFixit opening tool to unplug the battery from the motherboard.

    • Potential for device damage: Make sure to be gentle while removing the wire.

  6. xSuPNY5pHBdUrEPt

    • Remove the battery from the laptop.

    Removing the battery is not necessary for removing/replacing the WiFi card. However, as a precaution, do unplug the battery as shown in Step 5

    Fritz Borrelnootje -

  7. L2AP5Bii5Y3Yg1W5
    L2AP5Bii5Y3Yg1W5
    Yxlifr4iEKNJapxr

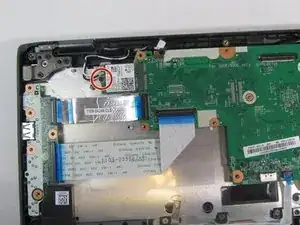

    • Remove the single 2 mm screw from the Wi-Fi card using a Phillips #00 screwdriver.

  8. jTNIqA6MXTIFCGUl
    jTNIqA6MXTIFCGUl
    vm22LlLyfapto4SN

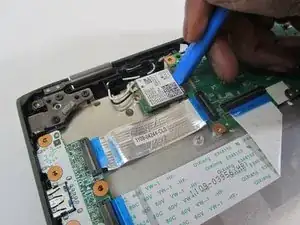

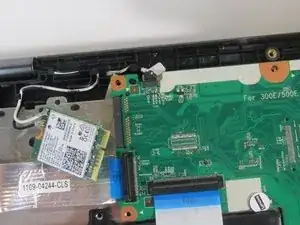

    • Detach the Wi-Fi card from the motherboard using an iFixit opening tool.

  9. lEUxCEFAmMBuVhvT
    lEUxCEFAmMBuVhvT
    XmrJcp6GLeTNDKIy

    • Using tweezers, disconnect the two wires from the Wi-Fi card.

    • Remove the Wi-Fi card from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
