Lenovo A7-50 A3500 Battery Replacement

Geschrieben von: Stefan K
  • Kommentare: 0
Lenovo A7-50 A3500 Battery Replacement

Schwierigkeitsgrad

Difficult

Schritte

6

Zeitaufwand

20 - 25 Minuten

Einleitung

  1. fLDquAPYO2UKvpng
    fLDquAPYO2UKvpng

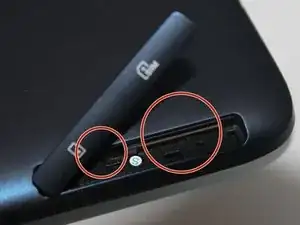

    WvKte2GtQ5RFTSwi

    • Remove SD and SIM card from device

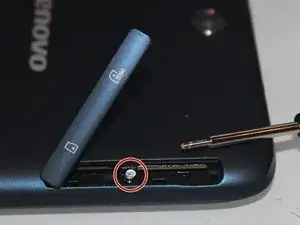

  2. kx1YZnb2HoRwKTjS

    • Remove screw with a simple coss screwdriver

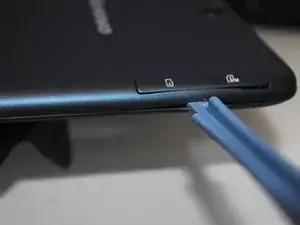

  3. F6sauRVsfyBBcMfx
    F6sauRVsfyBBcMfx

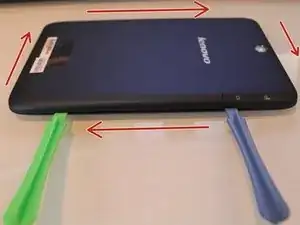

    p2mHVJdDOCKS4d12
    bjAujbqTNpBFyljg

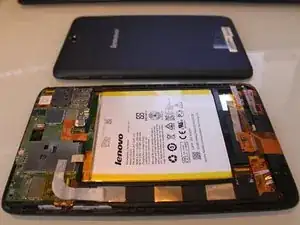

    • Remove cover. Starting from the point where you removed the screw.

    • Disassemble cover clockwise.

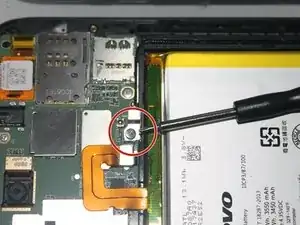

  4. eR5Ji1qNdRBXS1Bn
    eR5Ji1qNdRBXS1Bn

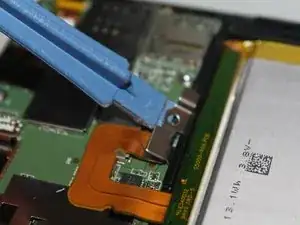

    56ScApECEbVuwvhY

    • Remove screw with simple screw driver

    • Remove metal holder as shown in picture

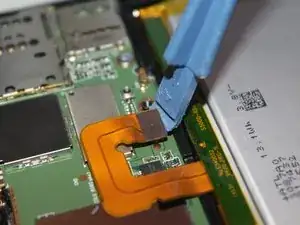

  5. bRiQTgI3IXCilsKY

    • Remove connection cable as shown.

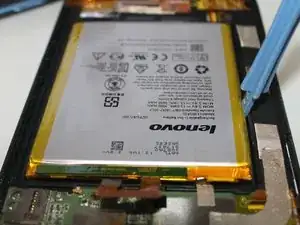

  6. YnYSYLwAraSONY4p

    • Disassemble battery pack. This might require a bit of pressure as it is glued

Abschluss

To reassemble your device, follow these instructions in reverse order.
