Einleitung

In this guide you will learn how to replace the motherboard and the speaker assembly. Both the motherboard and speaker are connected.

  1. jGvj6GhrdxRbcgpu
    • Remove the back cover by prying it open with the metal spudger tool.

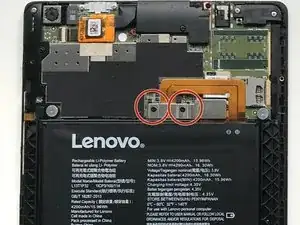

  2. LGEBTpMbYKhe3TKj
    • Remove the two screws with a PH000 head screwdriver.

    • Keep all your screws in one place.

  3. BJrBG4CHgQTxELZM
    • Remove the metal piece.

    • Keep this piece safe, as you will need it to reassemble the device again.

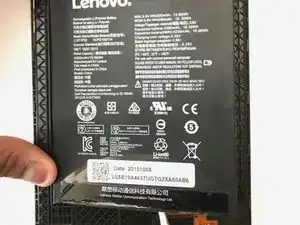

  4. UZyHVSR3PGsKd4DG
    • Remove the battery by lifting it up using a plastic spudger.

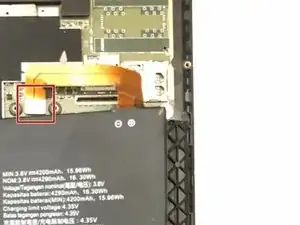

  5. CdYFDSoOCnUCNm4x
    • Disconnect the cable from the connection.

    • Be careful not to tear or bend the cable.

  6. UQygRh4igjApBvrU
    • Unscrew the 5 black screws, and the 9 silver screws with a PH000 head screwdriver.

    • Set aside carefully.

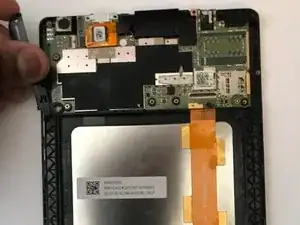

  7. nK45wDdBLlQ1lhaP
    nK45wDdBLlQ1lhaP

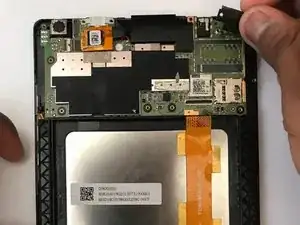

    oFNCE4cXHWobf1wW
    • Remove the two black panels and the clear circle piece.

    • Set aside carefully.

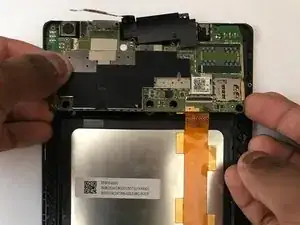

  8. ZCAiAwwFD1CxJknB
    • Lift up the motherboard carefully, ensuring that you lift the speaker housing and the motherboard together

  9. yBimPUMYLomqAfFj
    • Lift the bottom speaker piece up carefully

Abschluss

To reassemble your device, follow these instructions in reverse order.
