Lenovo B575-1450 CD-ROM Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

5 - 10 Minuten

Einleitung

The CD-ROM drive is fairly easy to locate and replace if it is no longer working.

  1. E6WH3OMaHMdksjL6

    • Turn off the computer.

    • Disconnect the charger from the computer.

    • Flip the computer upside down.

  2. NZUIVELIXbUWSoiY
    NZUIVELIXbUWSoiY
    PiV6pbhJQdyLDUEJ

    • Push the right-hand switch outward into the "unlocked" position.

  3. 3ZAHJAwwaOItScAS
    3ZAHJAwwaOItScAS
    YOdytTKAuEnCv5TZ
    i2SXFDuBIGANlciG

    • While holding the battery, use your other hand to push the left clip to the left and pull the battery out.

  4. DJaCwNngVItPbqP1
    DJaCwNngVItPbqP1
    Ni5QboPbkBwq3HT1

    • The screws are captive to the back panel so they are not to be removed.

    • Using the Phillips #00 Screwdriver, Loosen the five 5.4 mm screws around the back panel from the laptop.

  5. tbMxoCCBHRbqotLR

    • Using a plastic opening tool, pry the back panel from the laptop.

  6. 6WFs6QMFAabtfsC1

    • Pull the panel outward from the rest of the laptop. The inside of the laptop will be exposed. From here you can access the CD-ROM drive, hard drive, and Keyboard.

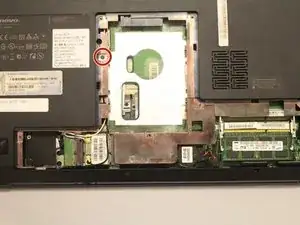

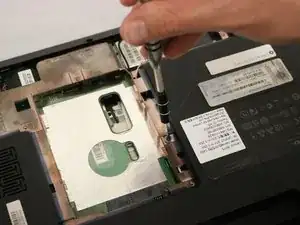

  7. AOUFNULPKBrIST5X
    AOUFNULPKBrIST5X
    VrDqQREiVqBtZMYT

    • Using the Phillips #00 Screwdriver, remove the 3.4 mm screw from the CD-ROM bracket.

    • This unlocks the CD-ROM drive from the computer

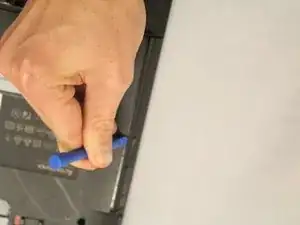

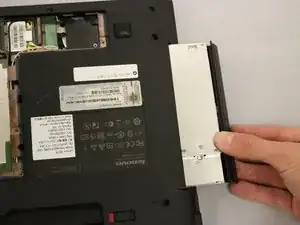

  8. IPdhdCxZsOLog1N6
    IPdhdCxZsOLog1N6
    25gDVnl5I1T6XCCy

    • Pry CD-ROM drive from laptop using a plastic opening tool.

    • Pull the CD-ROM drive the rest of the way out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
