Replacing the display screen for the Lenovo B575-1450 takes some time and patience due to the removal of many parts and keeping track of all the small screws. When reinstalling the display screen make sure to be careful with the connectors.

  1. E6WH3OMaHMdksjL6
    • Turn off the computer.

    • Disconnect the charger from the computer.

    • Flip the computer upside down.

  2. NZUIVELIXbUWSoiY
    NZUIVELIXbUWSoiY
    PiV6pbhJQdyLDUEJ
    • Push the right-hand switch outward into the "unlocked" position.

  3. 3ZAHJAwwaOItScAS
    3ZAHJAwwaOItScAS
    YOdytTKAuEnCv5TZ
    i2SXFDuBIGANlciG
    • While holding the battery, use your other hand to push the left clip to the left and pull the battery out.

  4. BQQwZaLsGwwdalwt
    BQQwZaLsGwwdalwt
    SGyHWbtXHbHXmyWK

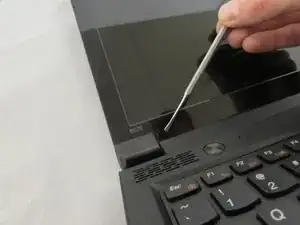

    • Remove both screw covers from the bottom of screen bezel using a plastic spudger. The screws underneath will now be exposed

  5. sEMT3x6vBqEdQDBy

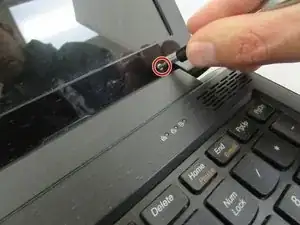

    • Using the Phillips #0 Screwdriver, remove the two 4.3 mm screws holding the display to the front bezel.

  6. uqZmvOrgyKl42dcV
    uqZmvOrgyKl42dcV
    PfF3OxuP23xSNAxQ

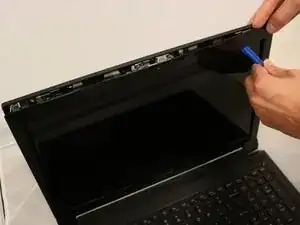

    • Separate the front bezel from the display panel using the plastic opening tool by gently prying around the edges and removing it.

  7. VZVo6PdwnG1j3366
    • Using the tweezers carefully disconnect the ZIF connector by pulling cable away from front facing camera that is attached to the back bezel.

  8. paDIDa2I4hhwfdaY
    paDIDa2I4hhwfdaY
    LXSSARmNXjjr3fcb
    UTUUbaQVqnWX4nVw

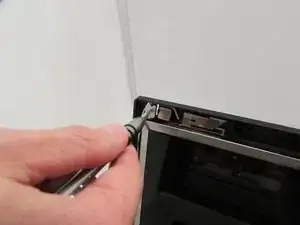

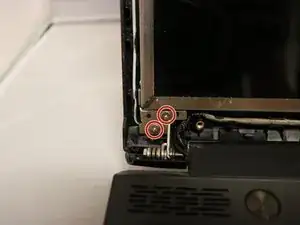

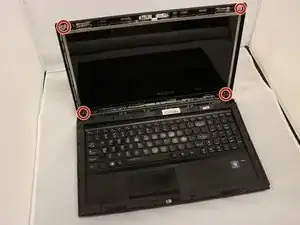

    • Using the Phillips #0 Screwdriver, remove the six 4.3 mm screws that connect display screen to the rear bezel.

    • There are two screws in the bottom left and right corners of the frame.

  9. YELNtCRKUy2xLOOL
    YELNtCRKUy2xLOOL
    mTwQjkeI4kvGvCMH

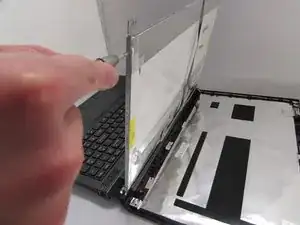

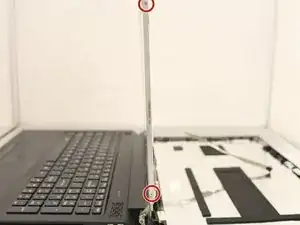

    • Using the Phillips #0 Screwdriver, remove the four 2.9 mm screws from each side of the bracket that holds the display panel in place.

  10. fsAJZQEnsbgJ6MwI
    fsAJZQEnsbgJ6MwI
    MSIVKkWYI2oIfRMU

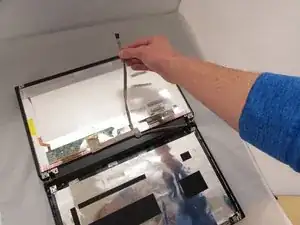

    • Lay display panel face down on the keyboard.

    • Peel back the flat wire that has the camera's ZIF connector until it is loose from the back of the display.

    • Carefully peel of the clear adhesive tape attached to the primary display ZIF connector using a plastic spudger.

  11. MCMjUAMGVyJb6MQl
    MCMjUAMGVyJb6MQl
    tfIjYqKvPhERrsFS

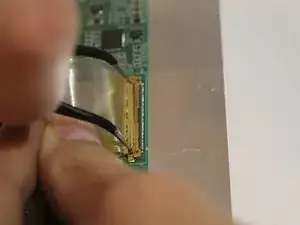

    • Place the metal tweezer tips between the ZIF connector and the wire-to-board connection.

    • Carefully separate ZIF wire-to-board connection by pulling metal tweezers in a downward motion.

    • Pull up on flat wire until display is completely disconnected.

    • Be very careful when separating ZIF connections . The ends of the ZIF wire connectors are delicate and can break easily.

Abschluss

To reassemble your device, follow these instructions in reverse order.
