Einleitung

The RAM card should be replaced if the computer won't boot, or if the computer is not running at an optimal speed. Replacing the RAM card for this laptop is a fairly easy process..

  1. E6WH3OMaHMdksjL6
    • Turn off the computer.

    • Disconnect the charger from the computer.

    • Flip the computer upside down.

  2. NZUIVELIXbUWSoiY
    NZUIVELIXbUWSoiY
    PiV6pbhJQdyLDUEJ
    • Push the right-hand switch outward into the "unlocked" position.

  3. 3ZAHJAwwaOItScAS
    3ZAHJAwwaOItScAS
    YOdytTKAuEnCv5TZ
    i2SXFDuBIGANlciG
    • While holding the battery, use your other hand to push the left clip to the left and pull the battery out.

  4. DJaCwNngVItPbqP1
    DJaCwNngVItPbqP1
    Ni5QboPbkBwq3HT1
    • The screws are captive to the back panel so they are not to be removed.

    • Using the Phillips #00 Screwdriver, Loosen the five 5.4 mm screws around the back panel from the laptop.

  5. tbMxoCCBHRbqotLR
    • Using a plastic opening tool, pry the back panel from the laptop.

  6. 6WFs6QMFAabtfsC1
    • Pull the panel outward from the rest of the laptop. The inside of the laptop will be exposed. From here you can access the CD-ROM drive, hard drive, and Keyboard.

  7. PdK2eOpwFMgGXybj
    PdK2eOpwFMgGXybj
    OER4tPLYgGTc1Fsp

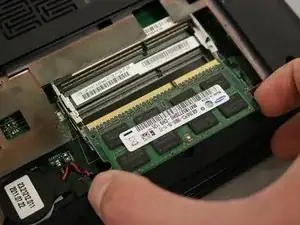

    • Using a plastic opening tool, pry the RAM upwards until the card pops out of the brackets.

    • Pull the RAM out from the slot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
