Lenovo Edge 15 Fan Replacement

Geschrieben von: Daniel De Leon
  • Kommentare: 0
Lenovo Edge 15 Fan Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

6 - 10 Minuten

Einleitung

This guide will provide the necessary steps to remove and install the fan in the Lenovo Edge 15. The Edge 15 has the fan and heatsink connected together so the heatsink will be also be replaced in this process.

  1. bMunHAIuYMUd2gSP
    bMunHAIuYMUd2gSP
    IPU3aupEv4SfBbwS
    UpFDB5AdXMMwgqFR

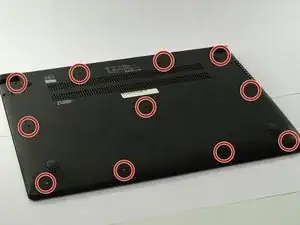

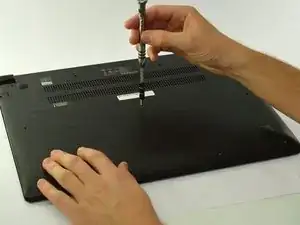

    • Turn laptop over and unscrew the eleven M2 x 6.0mm back cover screws with the Phillips #0 screwdriver.

  2. Yx4tXE5JqUibEuSl
    Yx4tXE5JqUibEuSl
    Q1Tf4iyIUweeRAjg

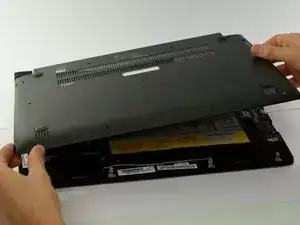

    • Gently lift the cover plate off the body of the laptop.

    • Ensure that it does not pull on any components such as the USB ports.

  3. mVkTQyk1a2yb2D5w
    mVkTQyk1a2yb2D5w
    voWH36XMoMQUYMY6

    • Unplug the fan connector.

    • Carefully pull out the male header with your fingernails.

    • Avoid pulling on the wire with a lot of force because this could cause the wire to snap off of the connector frame.

  4. ULousxn1dBniAiqD
    ULousxn1dBniAiqD
    Y4pcTMJchXTbK2KS

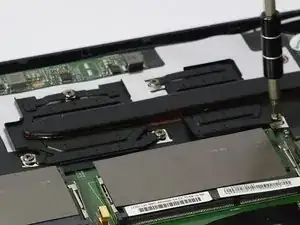

    • Remove the five M2 x 4.0 mm screws from the heat sink with a Phillips #0 screwdriver.

  5. gnAJyBfABGDXLtCQ

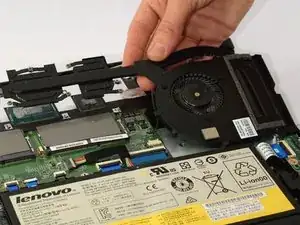

    • Gently lift the fan away from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
