Lenovo Edge 15 Ram Card Replacement

Geschrieben von: ryan sanders
  • Kommentare: 0
Lenovo Edge 15 Ram Card Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

This guide will show how to remove and install ram card in your Edge 15. This can be used to replace a broken card or to add more ram to increase the ram in your computer.

  1. ZLUxORIuxmoPKwNA

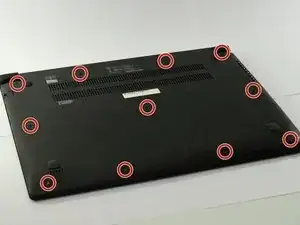

    • With the laptop upside-down, remove all 11 M2 x 6.0mm screws from the cover plate using the Phillips #0 screwdriver.

  2. UEtyKHs1LpUl4GGP

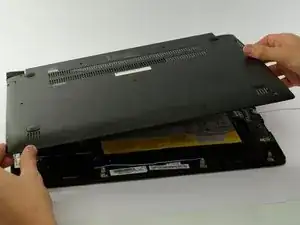

    • Gently lift the cover plate off the body of the laptop, ensuring that it does not pull on any components such as the USB ports.

  3. FmPekemPGZODyq2a
    FmPekemPGZODyq2a
    GMFn2VTXwIFLKfAd

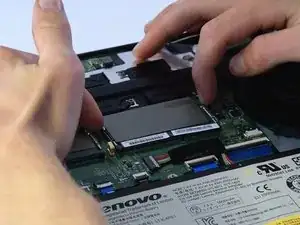

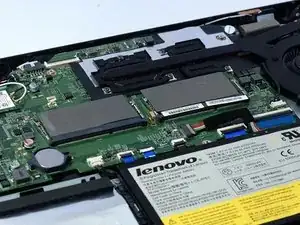

    • Release clips on both sides of ram unit.

  4. QvHGgddEgqtNfVMk
    QvHGgddEgqtNfVMk
    HLZClNRsPT33wCAq

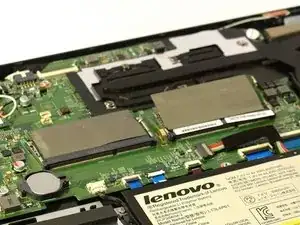

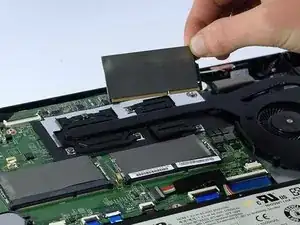

    • With ram unit now erect use hands to remove unit from its slot.

    • Place new ram unit into the slot and lightly press down to snap it back into place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
