The guide will show you how to remove the motherboard from the laptop. The process requires a lot of disarming, and a place to safely deposit screws is recommended.

  1. h5gZDOAEAiZVZ2Q2
    h5gZDOAEAiZVZ2Q2
    fV4wtP1BPALSsTbJ
    • Using the Phillips #0 screwdriver, remove the (11) eleven 5.4 mm screws from the back panel.

  2. Z1neaAtOPtNsgZty
    Z1neaAtOPtNsgZty
    X2AgaBULwagewAgK
    • Using a plastic opening tool, pull out the back panel from the laptop.

  3. 4hMHkLERee6MDytZ
    4hMHkLERee6MDytZ
    M1GpO6CuFbkavlRr
    NgpvnFDXCDdGSZ5n
    • Using the Phillips #0 screwdriver, remove the (2) 5.4 mm screws.

    • Disconnect the battery connector from the motherboard.

  4. TLldhjuIoiBmZxrb
    • Pull the battery outward and remove it from the rest of the laptop.

    The removal of the hard drive isn’t completely necessary in order to access the hard drive for removal.

    seattlehudson -

  5. jUOETOsMiSNEKWIN
    jUOETOsMiSNEKWIN
    xmZNmKxoX2NSvEnZ
    • Using the Phillips #0 screwdriver, remove the (3) three 3 mm screws.

  6. WVGnKKFQ64LuxrQ6
    WVGnKKFQ64LuxrQ6
    B6PyW2NInTFSE4tU
    • Slide the drive away from the connector by applying pressure on the two side tabs where screws were removed. Use a plastic opening tool as a lever to lift the drive out.

    The hard drive can also be slid backward from the connection. Then the clips will clear and can be easily lifted out. Additionally, it disconnects the hard drive at the same time. This also keeps from possibly breaking the clips or damaging the drive by prying.

    seattlehudson -

  7. cIv2soXXEYy21YSB
    cIv2soXXEYy21YSB
    hYKBIVQLP4FdIDJV
    • Carefully, using your hand, remove the hard drive from the laptop.

  8. jnMvLLGuX2SQCGPQ
    jnMvLLGuX2SQCGPQ
    W3RoLnqxn3hGepPH
    vE2e5HFm6GFHHxdl
    • Remove the 5.4 mm Phillips #0 screw holding the Wireless Network Card.

    • The network card will pop up by itself.

  9. GLbuTMU1boWjdkCj
    GLbuTMU1boWjdkCj
    slZtFrBYPH3GQHfm
    • Grab the network card and gently pull it out.

  10. yVa4H2bVa2lUPv5V
    yVa4H2bVa2lUPv5V
    NmB3lOa1Ph2OFYRZ
    • Pull out the RAM metallic cover.

  11. dVee1ckRoioN4lWG
    dVee1ckRoioN4lWG
    PvFKtVpPNrKSZBBp
    • Grab the black insulating tape and pull it out.

  12. MsaAEnA4Iww2kFqI
    MsaAEnA4Iww2kFqI
    STBABfkLnWm2O6VL
    • Using the Phillips #0 screwdriver, remove the (6) six fan screws from the device.

    • (5) Five copper and (1) one silver Phillips #0 5.4mm screws.

    • Disconnect the fan from the motherboard.

  13. ylVSqO5ZE3X5oqBF
    ylVSqO5ZE3X5oqBF
    m1wYxeiaexiiRRED
    • Unplug the Fan connector from its socket on the motherboard.

  14. hFccXIfKQGkeKIWn
    hFccXIfKQGkeKIWn
    m6XoAJmwFqVCmulu
    • Carefully remove the fan from the laptop.

  15. beQRpIqnXvQyMONw
    beQRpIqnXvQyMONw
    MdDTJwqXnOoMHB3M

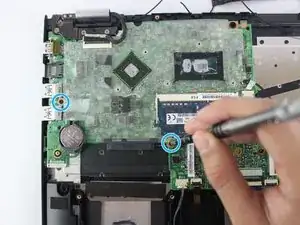

    • Using the Phillips #0 screwdriver, remove the (2) two 5.4 mm Phillips screws.

    • Disconnect these connectors from the motherboard.

    • Disconnect the four ribbon cables from the motherboard.

    • Unscrew and remove the (2) two Phillips #0 screws.

  16. dAnjWYIouG2YfJIp
    dAnjWYIouG2YfJIp
    T4Vx4uZcBSlL6MRX
    5Uh3BCxWGCgphO1F

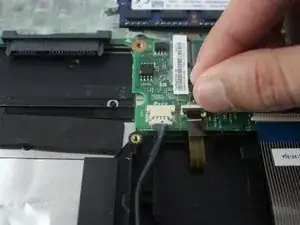

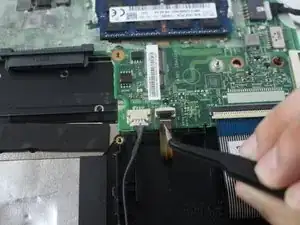

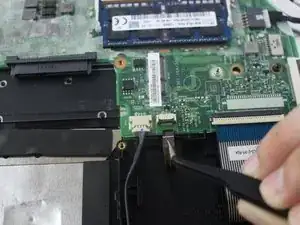

    • Lift up the black latch of the ribbon cable with the brown tab on top by holding the cable in to the motherboard.

    • Grab the tab with a pair of pliers and pull out the cable.

  17. AtwTNafTttJUyZPc
    AtwTNafTttJUyZPc
    5jBCKQKWuhNXsRJD
    MRQJUr3kJvJoQmaO

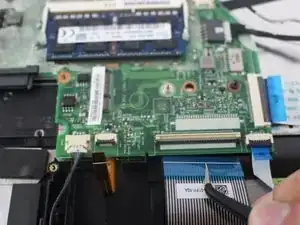

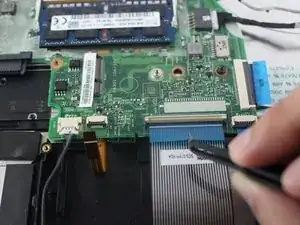

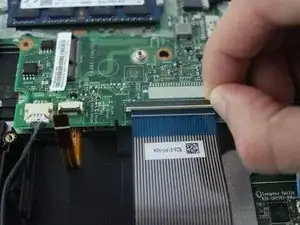

    • Lift the beige latch of the ribbon cable with the blue tab by holding the cable in to the motherboard, and with a pair of tweezers, pull out the cable.

  18. G1wfwJYnsq2HH53S
    G1wfwJYnsq2HH53S
    s3G4AeqUEobAMMwR
    ZJmWy41mRWvouICN

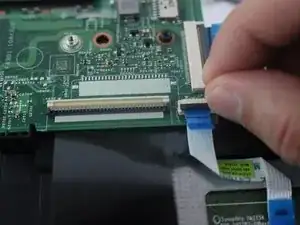

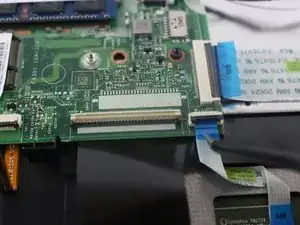

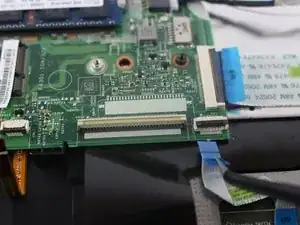

    • Lift up the black latch of the ribbon cable with the blue tab at the lower right corner of the motherboard and disconnect it with a pair of tweezers.

    • Grab the tab and pull out the cable.

  19. MrIeSmZyn5qDBNlK
    MrIeSmZyn5qDBNlK
    uV2JajGsjSSBFwJA
    WqfJWjlapErbrntM

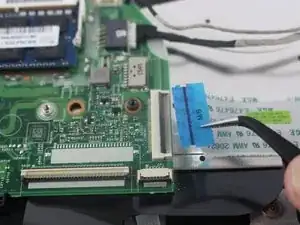

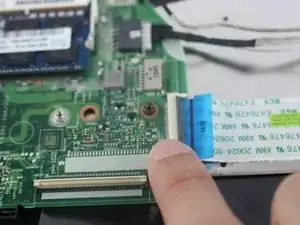

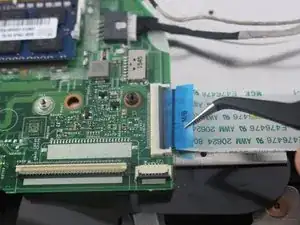

    • Locate the last ribbon cable with a blue tab and lift the beige latch holding the cable in to the motherboard.

    • With a pair of tweezers grab the tab and remove the cable.

  20. TeEF6qVWxYhLX6dl
    TeEF6qVWxYhLX6dl
    jWC2EITr1HkVGmNT

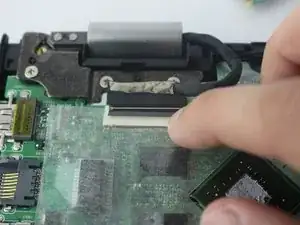

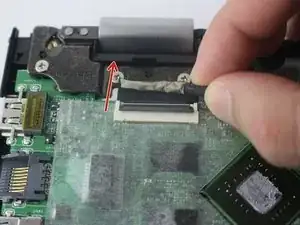

    • Lift the black latch of the black connector at the top left corner of the motherboard by holding it in to the motherboard.

    • Grab the cable and pull it outwards to remove it.

  21. ljJhKVjOBDrMmUuK
    ljJhKVjOBDrMmUuK
    ydxHnQfItJEmIhew

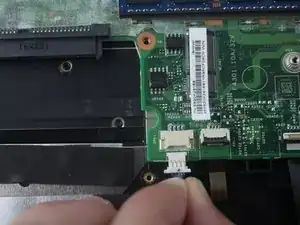

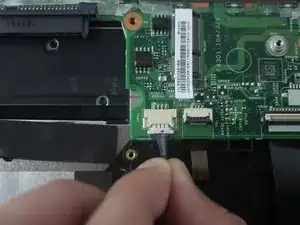

    • Pull the wire besides the brown tab ribbon cable out and disconnect it.

  22. ChB6yjwmkNnBbgE4
    ChB6yjwmkNnBbgE4
    Xac6REextPmNgkQI

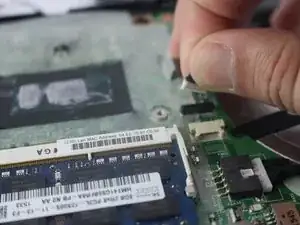

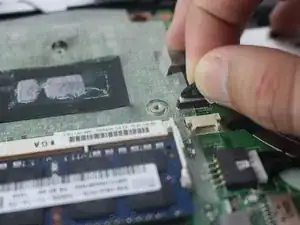

    • Grab the small black connector by the RAM module and disconnect it from the motherboard.

  23. u4btnhD4URRjMLEq
    u4btnhD4URRjMLEq
    DIYNKmMcUKHf1naU

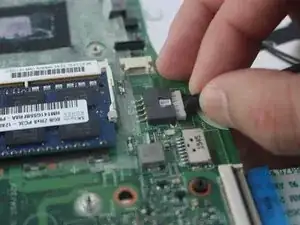

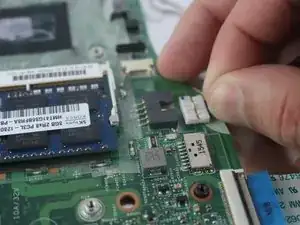

    • Unplug the remaining connector besides the RAM module and remove it from the motherboard.

  24. yHTmbepkYZQJ4iwJ
    yHTmbepkYZQJ4iwJ
    R3YOTeekcHOe6nwS

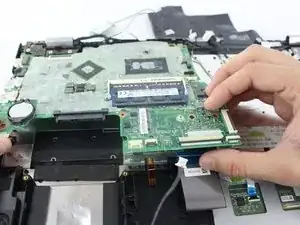

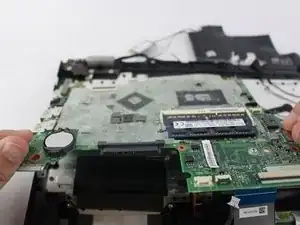

    • Gently grab the motherboard and pull it up lightly. Then pull it towards you and remove the motherboard.

    Exelente ayuda

    DAVID MEDINA -

Abschluss

To reassemble your device, follow these instructions in reverse order.
