Lenovo Edge 2-1580 RAM Replacement

Geschrieben von: Julian Escallon
  • Kommentare: 3
Lenovo Edge 2-1580 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

The guide will show you how to remove and replace the RAM module that comes with the laptop. Be sure the new replacement module is compatible with the motherboard.

  1. h5gZDOAEAiZVZ2Q2
    h5gZDOAEAiZVZ2Q2
    fV4wtP1BPALSsTbJ

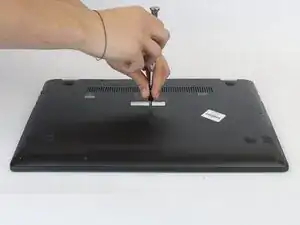

    • Using the Phillips #0 screwdriver, remove the (11) eleven 5.4 mm screws from the back panel.

  2. Z1neaAtOPtNsgZty
    Z1neaAtOPtNsgZty
    X2AgaBULwagewAgK

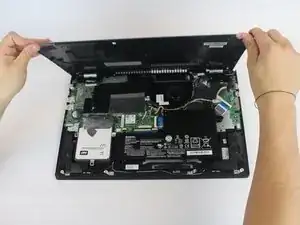

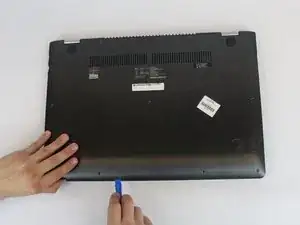

    • Using a plastic opening tool, pull out the back panel from the laptop.

  3. 4hMHkLERee6MDytZ
    4hMHkLERee6MDytZ
    M1GpO6CuFbkavlRr
    NgpvnFDXCDdGSZ5n

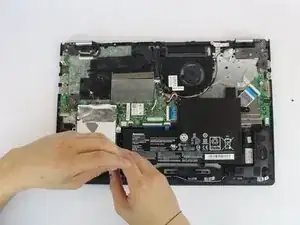

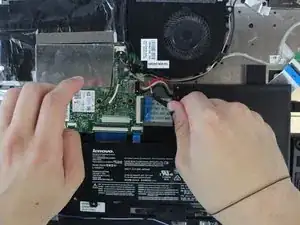

    • Using the Phillips #0 screwdriver, remove the (2) 5.4 mm screws.

    • Disconnect the battery connector from the motherboard.

  4. TLldhjuIoiBmZxrb

    • Pull the battery outward and remove it from the rest of the laptop.

    The removal of the hard drive isn’t completely necessary in order to access the hard drive for removal.

    seattlehudson -

  5. KORnBClOkVHikxAV
    KORnBClOkVHikxAV
    1TwdJYJASQuAcn5V

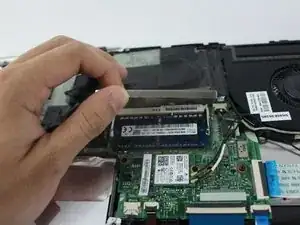

    • Remove the metallic RAM cover

  6. SUxBGeEpdtAA4JiD
    SUxBGeEpdtAA4JiD
    g6DZQQM3A4baYM5p

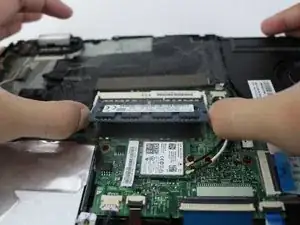

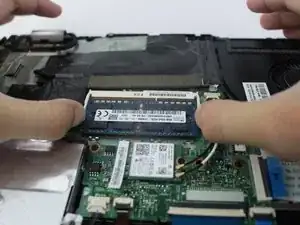

    • With both of your thumbs, gently pull both adjacent levers outwards. The RAM module will rise a bit.

  7. Z3EyNFZxDLGXMSKH
    Z3EyNFZxDLGXMSKH
    JDnDA15i6l66lWMh

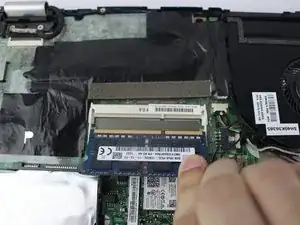

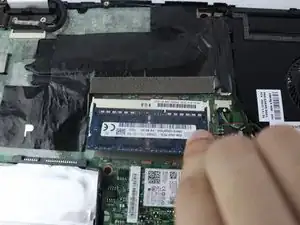

    • Grab the RAM module , and gently pull it out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
