Lenovo Edge Thinkpad E431 Cooling Fan Replacement

Geschrieben von: Nathan Behan
  • Kommentare: 0
Lenovo Edge Thinkpad E431 Cooling Fan Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

20 Minuten

Einleitung

This is a step by step guide on how to remove the fan assembly on the Lenovo Thinkpad Edge E431.

  1. 6YcgG6T4ciG1pG5U

    • Close the device and remove all power cables.

    • Lay the laptop flat with the bottom facing upwards.

  2. vGKwVGl5k3mvMdyG

    • Remove the four 2mm Phillips #00 screws from the bottom panel.

  3. hsPhHlixIXqc2IAP
    hsPhHlixIXqc2IAP
    1gjZxxwOpQHsseQO

    • Remove the back panel of the device.

  4. kPTCEH1PD41VCvtK
    kPTCEH1PD41VCvtK
    hXlSpYPbuh5gIY2P
    PJlhqlVFUamU5UTn

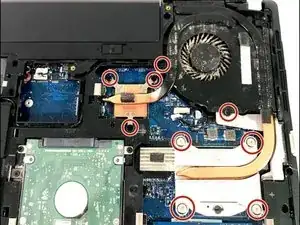

    • Remove the nine 2mm Phillips screws from the cooling assembly.

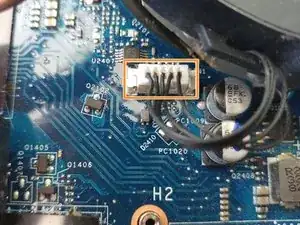

    • Using the tweezers, remove the fan power cable from the motherboard.

  5. EYHeTSXlQGHOsKGy

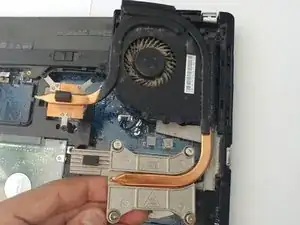

    • Lift the fan assembly out of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
