Lenovo Edge Thinkpad E431 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

4 Minuten

Einleitung

This is a guide made to show how to replace the RAM in a Lenovo Edge Thinkpad E431.

  1. 6YcgG6T4ciG1pG5U

    • Close the device and remove all power cables.

    • Lay the laptop flat with the bottom facing upwards.

  2. vGKwVGl5k3mvMdyG

    • Remove the four 2mm Phillips #00 screws from the bottom panel.

  3. hsPhHlixIXqc2IAP
    hsPhHlixIXqc2IAP
    1gjZxxwOpQHsseQO

    • Remove the back panel of the device.

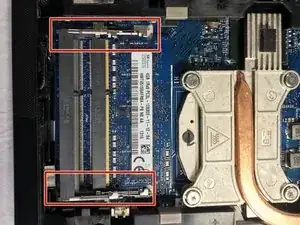

  4. FMTBj2MsJjTg6Mdp

    • Using your fingers, spread the clips away from the RAM module.

    • The RAM should "pop" out of its socket.

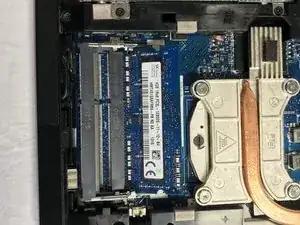

  5. 2YYnONbocZVgjcUZ
    2YYnONbocZVgjcUZ

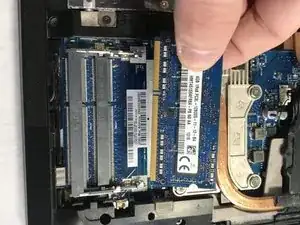

    hrCqAVeEdCO4BC5L

    • Pull the RAM out at a 30 degree angle.

Abschluss

To reassemble your device, follow these instructions in reverse order.
