Lenovo Edge Thinkpad E431 Screen Replacement

Geschrieben von: Abdullah Muhammad Ashfaq Nadir
  • Kommentare: 5
Lenovo Edge Thinkpad E431 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 Minuten

Einleitung

This guide will show you how to replace the screen on a Lenovo ThinkPad Edge E431 laptop.

  1. lXH164FiWGr36iiw
    lXH164FiWGr36iiw
    IMLWOjZEXHyLMArj

    • Remove the 2mm Phillips #00 screw from the battery cover.

    • Lift the battery cover out of its slot.

    Please use a #1 Phillips driver and not a #00.

    Steven Michael -

  2. BLPBcoE6lEpTmPpZ

    • Disconnect the battery cable.

  3. PPFwfJJv4QDBtAZk

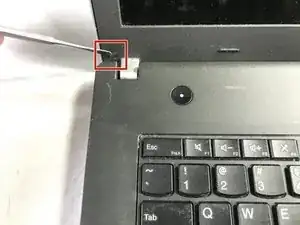

    • Use the pointed end of a spudger to remove the two screw covers from the bottom corners of the display.

    Also, if this is the E430, remove the two rubber bumpers at each upper corners to reveal two more M2 screws.

    Steven Michael -

  4. f6yNFf3GHhrkhlov

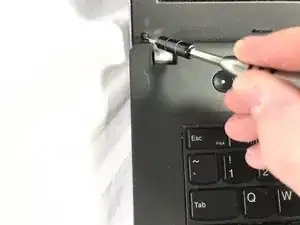

    • Remove the two 2mm Phillips #00 screws found at the bottom corners of the display.

    Please use a #1 Phillips driver and not a #00.

    Steven Michael -

  5. gJvFYPIenU1tsxyQ

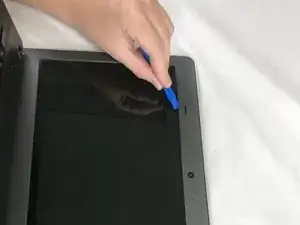

    • Separate the front bezel from the display using the plastic opening tool.

  6. pVcIyiK2BYbTmmFg

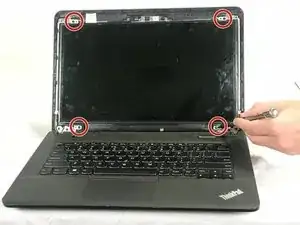

    • Remove the four 2mm Phillips #00 screws from the screen.

    Please use a #1 Phillips driver and not a #00.

    Steven Michael -

  7. hxEPQIltio6uUEMy
    hxEPQIltio6uUEMy
    htcFBSYkHtM4iIwZ

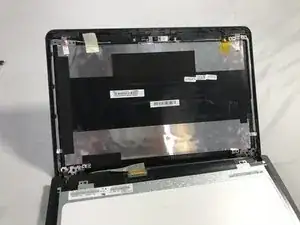

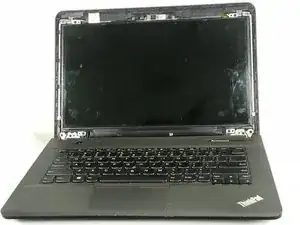

    • Lay the screen flat on top of the keyboard.

  8. ZYHx1PVGPdaZWWdO
    ZYHx1PVGPdaZWWdO
    DDy6xK6cl35irdrx

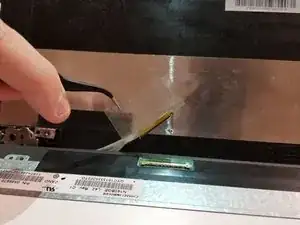

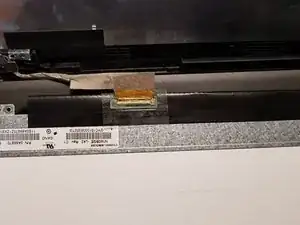

    • Peel up the adhesive tape to unlatch the metal retaining bracket on the display cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
