Lenovo Essential B570 RAM Replacement

Geschrieben von: Samuel Filliettaz
  • Kommentare: 0
Lenovo Essential B570 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

3 Minuten

Einleitung

This guide will help you remove and replace your RAM.

  1. 2MEnQBrHkaMkpcTr

    • Turn over laptop.

    • Switch open the left battery lock.

    • If you are replacing inner components of the laptop, it is recommended to remove the battery first to avoid damage to the laptop.

  2. O2TTt1sBB4DwBSTE

    • Hold the right battery lock open with one hand while removing the battery itself with the other.

  3. YhFriRyxFTZKg3on

    • Loosen the five Philips screws that secure the panel.

    • The screws do not actually fully remove from the panel. Loosening them as much as you can will be enough to disconnect them from the laptop.

  4. 5YlOFGuBsI6YZHa1
    5YlOFGuBsI6YZHa1
    aEfnlap5fsdBRTxG
    qUuJSSxAqsCDaR1M

    • Prop open the cover with a plastic opening tool.

    • If the cover does not come off easily, do not force it. Make sure all screws are loosened.

  5. v1rAeX5QFEjC1gHp
    v1rAeX5QFEjC1gHp
    WGJOYRbKVy4bEA1G

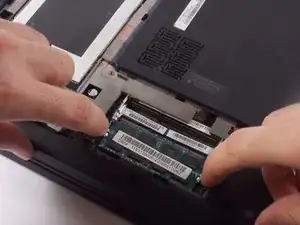

    • Release your RAM by pulling its locks away from one another.

  6. VEQQJcQmagZYh4SG
    VEQQJcQmagZYh4SG
    RVuYqFNoFQ1anrYm

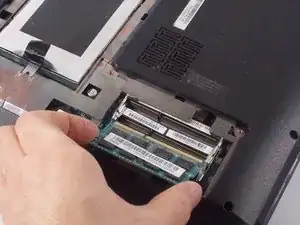

    • Remove RAM by carefully pulling it away from its socket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
