Lenovo Essential G555-0873 CPU Replacement

Geschrieben von: Michael Elledge
  • Kommentare: 0
Lenovo Essential G555-0873 CPU Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 Minuten

Einleitung

Use this guide to replace the CPU in the Lenovo Essential G555-0873. This requires removing the back panel, removing the fan, and removing the heat sink. The only tool you need to complete these steps is the screwdriver listed below.

  1. mWU5CuJqRNrCbVxP

    • Unscrew the two 5.1 mm screws that secure the bottom cover.

    • Note that the screws will not come all the way out of the sockets.

  2. djhsMbKPRwYOUn1n

    • Lift from the notch until the back panel comes up.

  3. 2UgItfFxoPRZMEmJ

    • Disconnect the fan from the motherboard by pulling the plug shown in the picture.

  4. XYGnPqwTslYDTknP

    • Unscrew the three 4.6mm screws shown in the picture.

  5. BdRAkoXKUT1pftFX

    • Gently lift the fan straight up until it is lifted out of the case.

  6. C5OnKG1JuhML5F5Z

    • Unscrew the four 7.3 mm screws shown in the picture.

    • Note that springs are attached to the screws. Do not remove the springs.

  7. QkydA3aMP1HTxNgP
    QkydA3aMP1HTxNgP
    Cu6rYRnvSrLLwPHI

    • Pull the heat sink assembly out of the laptop.

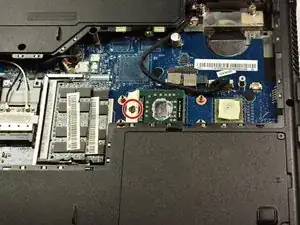

  8. ltbkXocuuJTQo2DP
    ltbkXocuuJTQo2DP

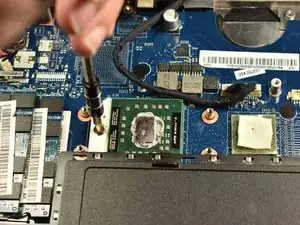

    XyYeCSVMYkWsrIBG

    • Use a flat-head screwdriver on the hinge shown, and turn counter-clockwise to the unlock position

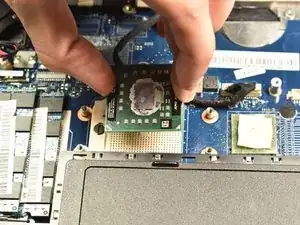

  9. OQ1nEPZ6Ljw5cDdU

    • Remove the CPU

    • There will be old thermal paste on the CPU and heat sink which should be wiped off using microfiber cloth.

    • Before putting the heat sink back in, a small droplet of thermal paste should be applied onto the center of the CPU.

Abschluss

To reassemble your device, follow these instructions in reverse order.
