Lenovo Essential G555-0873 RAM Replacement

Geschrieben von: Michael Elledge
  • Kommentare: 0
Lenovo Essential G555-0873 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

Use this guide to replace the RAM sticks in the Lenovo Essential G555-0873. The RAM sticks are clipped in and don’t require a tool for replacement.

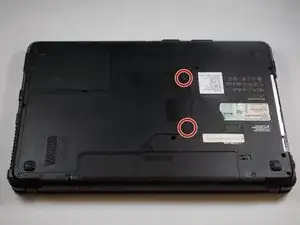

  1. mWU5CuJqRNrCbVxP

    • Unscrew the two 5.1 mm screws that secure the bottom cover.

    • Note that the screws will not come all the way out of the sockets.

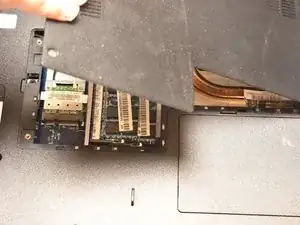

  2. djhsMbKPRwYOUn1n

    • Lift from the notch until the back panel comes up.

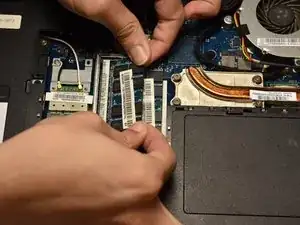

  3. gCVWYYEuERGDFgmU
    gCVWYYEuERGDFgmU
    boR1oSoIxQHB6oot
    dFqpQxuJDwNPCOEm

    • Push apart hinges shown in picture until RAM pushes itself up to approximately a 30 degree angle.

  4. DU4jqEXODcaQTiMh

    • Pull the RAM stick out of its socket.

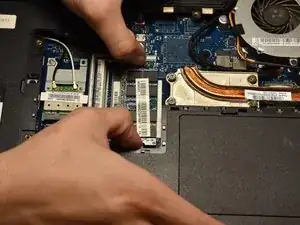

  5. eTqWZLafCOJ4HOp4

    • Push apart hinges of lower RAM stick until it pops up to a similar angle.

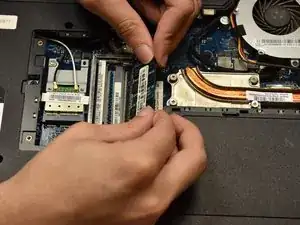

  6. MqYSmUJrnXQlpWPu

    • Pull out second RAM stick in the same way as the first.

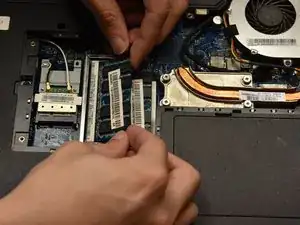

  7. GTgViCpCa6stPmpE
    GTgViCpCa6stPmpE
    mxH1ByJ5yBCh361F

    • Push RAM sticks in diagonally, then push down and snap it in with hinges.

    • Make sure that the RAM stick is aligned with the notch on the port when inserting it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
