Lenovo Flex 2-14 Hard Drive Replacement

Geschrieben von: Eva Beilin
  • Kommentare: 1
Lenovo Flex 2-14 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

15 Minuten

Einleitung

Use this guide to replace a full or faulty hard drive in your Lenovo Flex 2-14 laptop.

If your Lenovo Flex 2-14 laptop (model 20404) has slowed down and is constantly freezing, you may need to replace the hard drive, especially if you have already tried other methods to fix these issues.

The hard drive stores and retrieves data in your computer. Make sure you back up your hard drive before replacing it in order to not lose any data. You may also want to upgrade your hard drive if you are running low on storage, as that can cause your laptop to slow down.

Before beginning, make sure to power off your laptop completely and disconnect from any external power source.

  1. SBqmeQGNISZVRxDL
    SBqmeQGNISZVRxDL
    wJCOGCbRIQuWUMDf
    4wBUBaY1uqeruigb

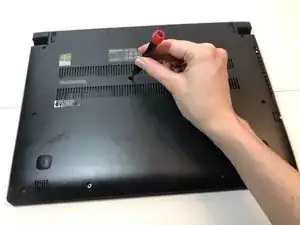

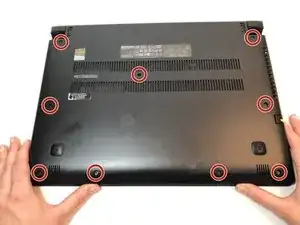

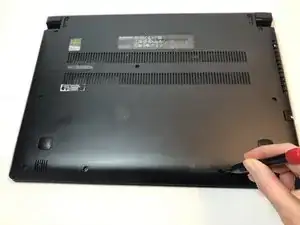

    • Make sure your laptop is off before you begin.

    • Flip the laptop over so the bottom is facing upwards.

    • Remove all nine 6mm Phillips #0 screws located along the edges and in the centre of the back panel.

    What the size of screw M3/M4/M5

    Vinod Gurjar -

  2. APZrTd1AT1UGFjjE
    APZrTd1AT1UGFjjE
    HXN53HQQLIIPM1v2

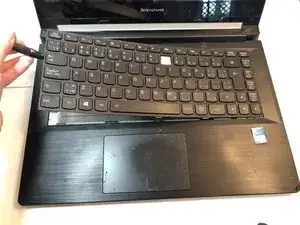

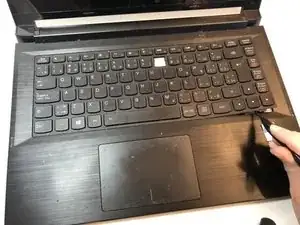

    • Using a prying tool, carefully lift up the keyboard.

  3. O1LOellxqYqCxeWG
    O1LOellxqYqCxeWG
    GTTrZMTTeeAYYC61
    1thEkCjOVwBmgcdl

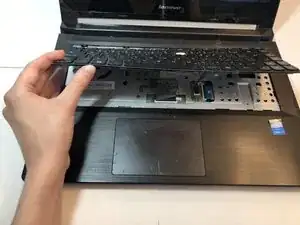

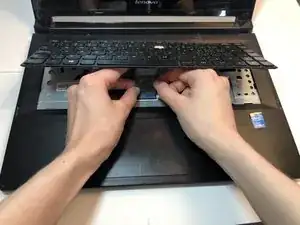

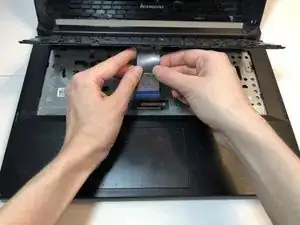

    • Take out the keyboard by disconnecting the cable.

  4. yqvULn4cwNRHT1ZM
    yqvULn4cwNRHT1ZM
    vArcQ22XZqdQqUBq

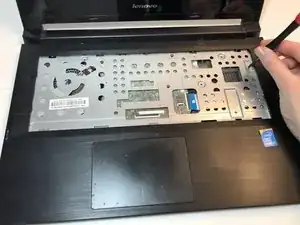

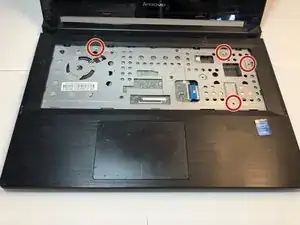

    • Remove all four 3.5 mm Phillips screws underneath the keyboard.

  5. ZIHGy2qH2RLxycHD
    ZIHGy2qH2RLxycHD
    TI1bRfyhDBWHbslS
    MF5DOao5yFVZUIiW

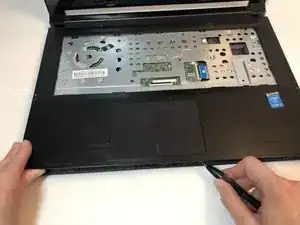

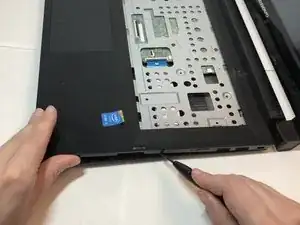

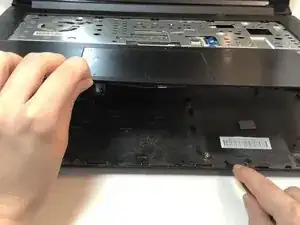

    • Separate the top and bottom panels of the laptop using a prying tool.

    • Slide the prying tool along the edges of the laptop until the bottom panel is completely separated.

    • Remove the back cover of the laptop once you have finished prying it open.

  6. OdiiKL2fuKTYiMY1

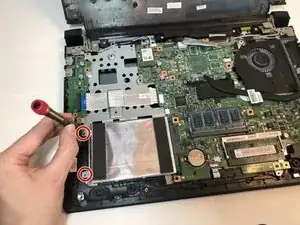

    • Remove the two 4 mm Phillips screws holding the hard drive adapter in place.

  7. ykq2nRsym5jVwc1p
    ykq2nRsym5jVwc1p
    RctGY1bTCWBj3wB1
    Yg5Cx1f1LHRQEqkg

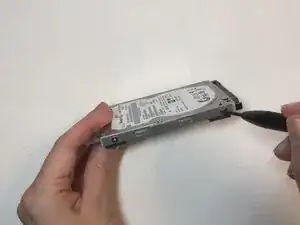

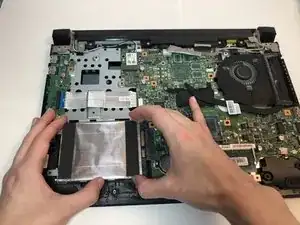

    • Take out the adapter containing the hard drive from the laptop.

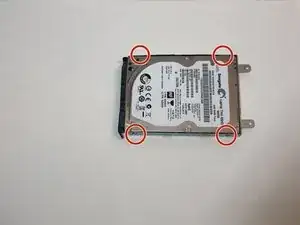

    • Remove all four 4mm Phillips screws from the adapter.

  8. aNWBVpwoMPFCZusO
    aNWBVpwoMPFCZusO
    DW4fDaqSfvcKFfra
    JUOdNJ5Y3PCM2ZYI

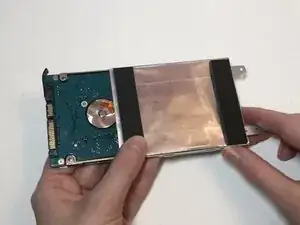

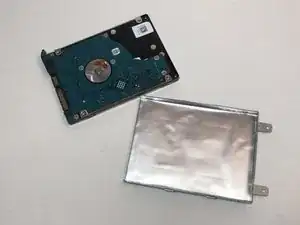

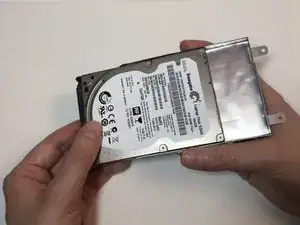

    • Remove the hard drive from the adapter.

    • Insert the new hard drive into the adapter.

  9. TnLMyePVsNlaqOkB
    TnLMyePVsNlaqOkB
    u3n1k3EgZZNRi6At
    GhwjJ3hGcByFQENl

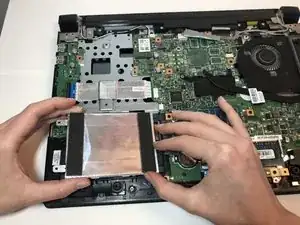

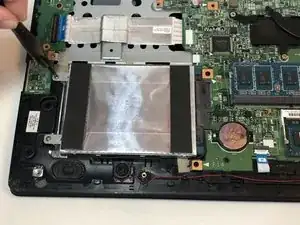

    • Put all four 4mm Phillips screws back into the adapter with the hard drive, in order to hold it in place.

    • Put the adapter back in and reassemble the laptop.

    • Before reassembling, make sure the hard drive is securely in the case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
