Einleitung

Use this guide if your Lenovo Flex 3-1120 has entirely lost wireless functionality. The wireless network card is a simple and easy process.

  1. UD1xvclGlRMJVBEG
    • Lay the computer down with the bottom panel facing up.

  2. lrdlEQNoNydo3Jlv
    lrdlEQNoNydo3Jlv
    XdONt4B6CFB5uOdA
    • Locate the ten 6mm Phillips screws along the edges and in the center of the back panel.

    • Remove all ten 6mm Phillips screws with a size 0 Phillips screwdriver.

  3. WMHqkoGl4OfBU24L
    • Wedge the plastic opening tool into the small space under the back panel.

    • Use the plastic opening tool as a lever to separate the bottom panel from the computer.

    • Slide the tool along the edges of the computer until the bottom panel is completely separated.

    • You may start prying the bottom panel on any edge.

  4. PJtwf5f1bJUxBrDM
    • Lift the bottom panel off of the computer.

  5. XBf54kJGHJDlDRYh
    • Locate the network card on the top right of the computer.

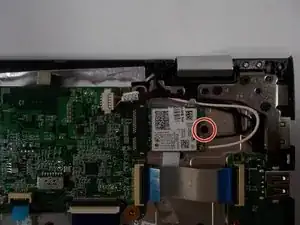

  6. DWUoKwIgBeoJZLU1
    DWUoKwIgBeoJZLU1
    QSGdo3hm2YkxD2K2
    • Locate the single 3.5mm Phillips head screw on the right edge of the network card.

    • Remove the single screw with a size 0 Phillips screwdriver.

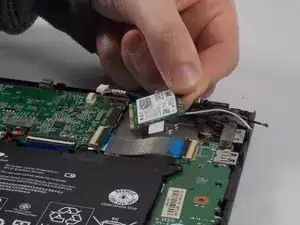

  7. wQaPsnC5vJILAbEN
    • Slide the network card out to the right to remove it from the motherboard.

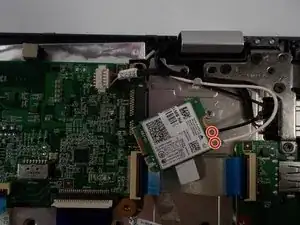

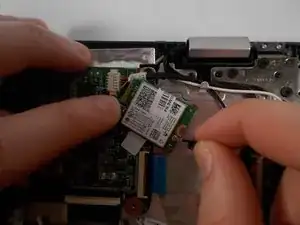

  8. ILXEBEoPKFG6kHyu
    ILXEBEoPKFG6kHyu
    HbP4VJREg51FStRt
    • Locate the black and white antenna wires that are connected to the right edge of the network card.

    • Wiggle and pull upward on the two antenna cords connecting to the card to remove them.

Abschluss

To reassemble your device, follow these instructions in reverse order.
