Lenovo Flex 6-11IGM Heat Sink Replacement

Geschrieben von: Rie Kuraoka
  • Kommentare: 0
Lenovo Flex 6-11IGM Heat Sink Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

5 - 15 Minuten

Einleitung

If your Lenovo Flex 6-11IGM (model #: 81A70005US) is getting too hot from the bottom, the heat sink may be broken. In that case, use this guide to replace the heat sink.

The heat sink helps to regulate the temperature of the laptop to make sure that it doesn’t overheat or damage any of the other components of the laptop.

Before beginning, make sure you power off the device and make sure the laptop is closed for an easier and safer replacement.

  1. JQybQ3VEJaLkivw4

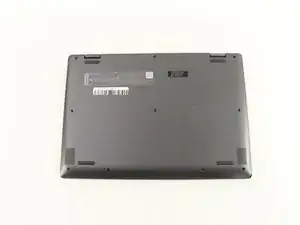

    • Flip the device over and lay it down with the underside facing upwards.

  2. VHdKpKITEMOIIulT
    VHdKpKITEMOIIulT
    sVADqyHHY15KxjpX

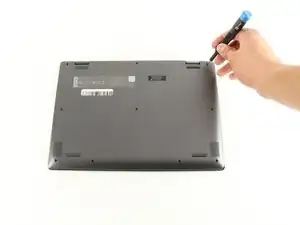

    • Remove the ten screws with a Phillips #00 screwdriver.

  3. KSqEhDCxbMQBxo2N

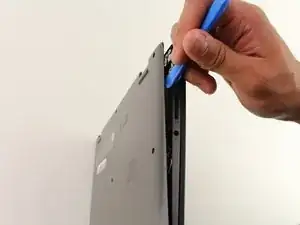

    • Using a plastic opening tool, make your way around the edge of the laptop.

  4. LBPTioxNFYqq4DBU
    LBPTioxNFYqq4DBU
    bEVRNpiPiMtj5Zin

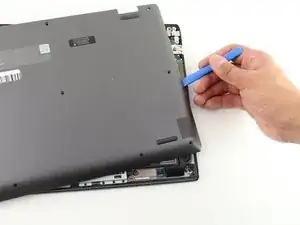

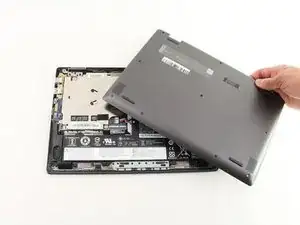

    • After making sure the back panel is completely free from the body, remove the back panel.

  5. UTpJZ5aUlDr2HAA5
    UTpJZ5aUlDr2HAA5
    FkrHCLKktyonbyeL

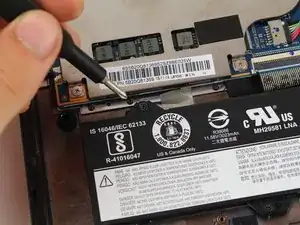

    • Remove the five 3.9 mm Phillips #00 black screws holding the battery in place.

  6. PyMGmPYeiOwRlGuB
    PyMGmPYeiOwRlGuB
    KbRyGQXolTsTweFl
    3KJgKvbQXkqqmuX6

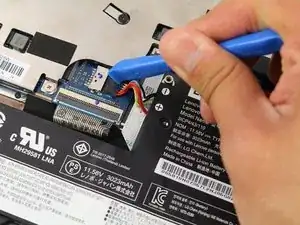

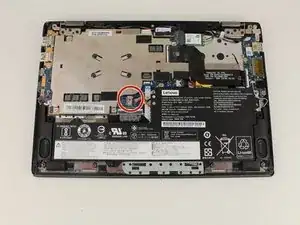

    • Pull out the multicolored connecting cables using an iFixit opening tool.

  7. hXB4RwRUXnvlsyV2

    • Remove the now disconnected battery from the laptop.

  8. uOsOTxJOwAhCabIa
    uOsOTxJOwAhCabIa
    xtaAXvPAUdUGxFIN
    VVKCPMRPwkWpRUut

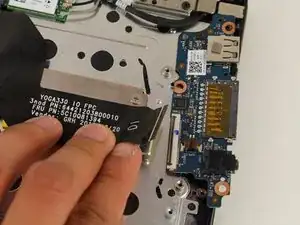

    • Disconnect the ribbon connector from both ends by disengaging the black latch and pulling it directly from its port.

  9. KoQxlOMG6ONKkyxX
    KoQxlOMG6ONKkyxX
    rPwcqHBVJLQUbce5

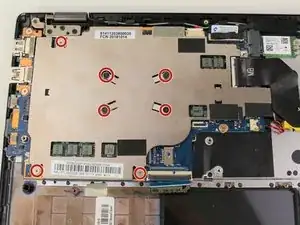

    • Remove the 3.5 mm length screws in the numbered order from 1-10 using the Phillips #00 screwdriver (not all are shown in the first image).

    • Remove the heat sink.

Abschluss

To reassemble your device, follow these instructions in reverse order.
