Lenovo G50-70 Fan Replacement

Geschrieben von: Caleb DesJardins
  • Kommentare: 1
Lenovo G50-70 Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

The fan on a computer is important for cooling the parts that generate a lot of heat. If fan is not running properly, there is a risk of other parts overheating and causing damage to critical components. Most computers have thermal throttling; this means speeds will decrease when it starts to overheat to prevent from damage.

  1. AD1SHAHyGOVbraRO
    AD1SHAHyGOVbraRO
    Nlf15PD1bJUD66qq
    UXLBNof3dMtqmbeR

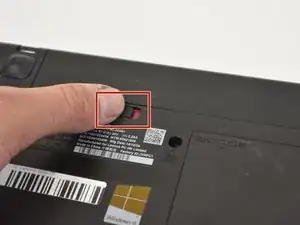

    • Push the left switch (labeled 1) to the left to show red underneath. This will unlock battery.

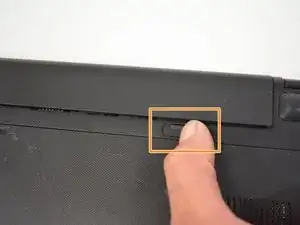

    • Push the right switch (labeled 2) to the right. This will eject battery.

  2. sibLJFoxMtOTeGM2

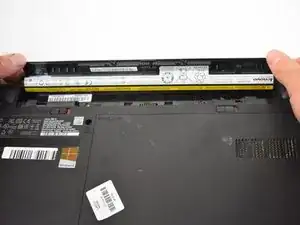

    • Rotate the battery away from the laptop.

  3. 2waLCQL1UlYLTTOV
    2waLCQL1UlYLTTOV
    NspVmAmqI1UjJDKG

    • Remove the three 6mm Phillips #0 screws holding the back access panel on.

  4. ACdrWayPUNdU3tad
    ACdrWayPUNdU3tad
    YxQXl4EOy1dM6xV1

    • Slide the cover toward you to unlatch it.

    • The edge of the panel will slide away from the laptop so it can be lifted.

  5. Rj3EVIMLk3OQrK5N
    Rj3EVIMLk3OQrK5N
    LPKdNpVCEPHI3ZXP

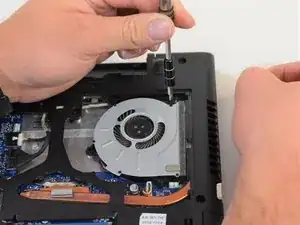

    • Remove the three 6mm Phillips #0 screws on the perimeter of the fan.

  6. uPAVFCEqdpBRYSwK
    uPAVFCEqdpBRYSwK
    E4rPDWFDw5UD1uZp

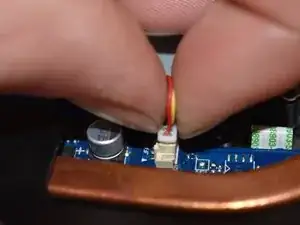

    • The fan is plugged into the motherboard next to the copper heat sync.

    • Unplug the bundled wire connector by pulling up on the white plug.

    • Do not pull up by the wires.

  7. pABDmPYMXYADeoA6
    pABDmPYMXYADeoA6
    mLVVowNGHGIPDKMG

    • Lift fan out of case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
