Lenovo G50-70 RAM Replacement

Geschrieben von: Caleb DesJardins
  • Kommentare: 0
Lenovo G50-70 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

6 Minuten

Einleitung

A computer has RAM (random access memory) as a place to hold the information it is computing. This is important because it takes longer to pull the information from the hard drive. Upgrading to a higher RAM capacity will increase computing speeds because it won't have to take information from the hard drive as often.

  1. AD1SHAHyGOVbraRO
    AD1SHAHyGOVbraRO
    Nlf15PD1bJUD66qq
    UXLBNof3dMtqmbeR

    • Push the left switch (labeled 1) to the left to show red underneath. This will unlock battery.

    • Push the right switch (labeled 2) to the right. This will eject battery.

  2. sibLJFoxMtOTeGM2

    • Rotate the battery away from the laptop.

  3. 2waLCQL1UlYLTTOV
    2waLCQL1UlYLTTOV
    NspVmAmqI1UjJDKG

    • Remove the three 6mm Phillips #0 screws holding the back access panel on.

  4. ACdrWayPUNdU3tad
    ACdrWayPUNdU3tad
    YxQXl4EOy1dM6xV1

    • Slide the cover toward you to unlatch it.

    • The edge of the panel will slide away from the laptop so it can be lifted.

  5. xsUtLQD4IR6NrEPq

    • The battery should be disconnected before taking off any internal parts.

  6. qwYH1wddAPpF2EB1
    qwYH1wddAPpF2EB1
    Asaeny2pqUCKgyFI

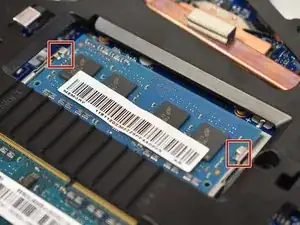

    • Start by removing top RAM stick held in by two spring clips on either side.

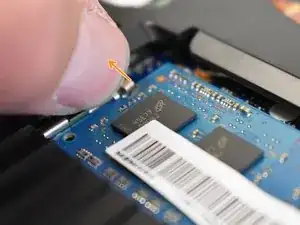

    • Press both spring clips away from RAM stick simultaneously.

  7. Dm2xXJu6L5DfBduA
    Dm2xXJu6L5DfBduA
    eTAnGNTVbv25cM6q

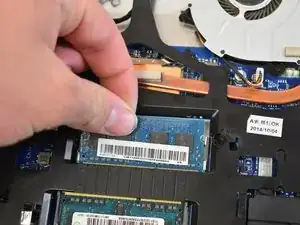

    • When both spring clips are pressed open, RAM stick should pop up. If it doesn't pop up on its own, you can pull it up. If spring clips are properly removed, you shouldn't encounter any resistance.

    • Lift RAM stick away from plug.

  8. 21kKfuWb5ESTCwLC
    21kKfuWb5ESTCwLC
    XsBSn3webAXNYWfS

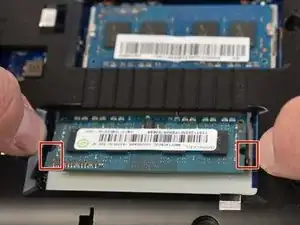

    • Lower RAM stick is removed the same way as the first. Pull two spring clips on either side away from RAM stick to release it.

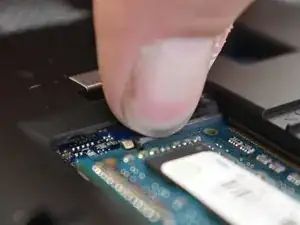

    • Spring clips on lower RAM stick look slightly different than the clips on upper ram sticks; however, they operate in the same way.

Abschluss

To reassemble your device, follow these instructions in reverse order.
