Lenovo G50-70 Wireless Card Replacement

Geschrieben von: Caleb DesJardins
  • Kommentare: 0
Lenovo G50-70 Wireless Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

When connecting to the internet, the computer should see the available wifi signals. If it cannot find any signals, the wireless card could be the problem.

  1. AD1SHAHyGOVbraRO
    AD1SHAHyGOVbraRO
    Nlf15PD1bJUD66qq
    UXLBNof3dMtqmbeR

    • Push the left switch (labeled 1) to the left to show red underneath. This will unlock battery.

    • Push the right switch (labeled 2) to the right. This will eject battery.

  2. sibLJFoxMtOTeGM2

    • Rotate the battery away from the laptop.

  3. 2waLCQL1UlYLTTOV
    2waLCQL1UlYLTTOV
    NspVmAmqI1UjJDKG

    • Remove the three 6mm Phillips #0 screws holding the back access panel on.

  4. ACdrWayPUNdU3tad
    ACdrWayPUNdU3tad
    YxQXl4EOy1dM6xV1

    • Slide the cover toward you to unlatch it.

    • The edge of the panel will slide away from the laptop so it can be lifted.

  5. FjBnWQABNEAyxsBP
    FjBnWQABNEAyxsBP

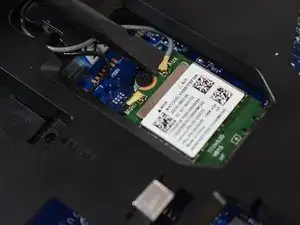

    VNAqGFghxPIhiFpE

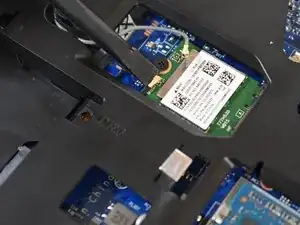

    umWQQqnkVXQlsakD

    • Disconnect the two plugs on the wireless card by pulling them up with a small tool.

    • Use a plastic spudger to minimize the risk of damage.

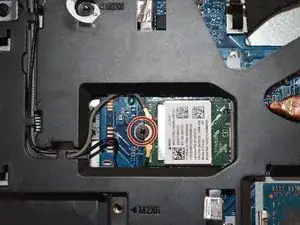

  6. 25LaVd5EZKcSPurb
    25LaVd5EZKcSPurb

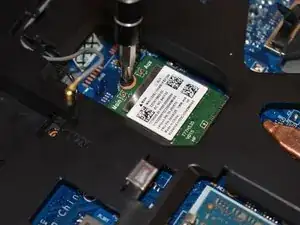

    PpBQnXFh3qcgsi22

    • Remove the one 3mm Phillips #0 screw.

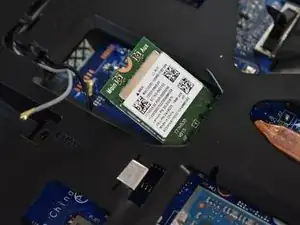

  7. lrhnXBMSVQXxxEWC

    • Lift up wireless card out of plug.

Abschluss

To reassemble your device, follow these instructions in reverse order.
