Lenovo G50-80 80E5 Fan Replacement

Schwierigkeitsgrad

Easy

Schritte

10

Zeitaufwand

10 Minuten

Einleitung

The Lenovo G50-80 80E5 is a high-performing laptop capable of running multiple applications at the same time. Because of this, a well performing fan is needed to ensure that all the components of the laptop stay cool as the fan keeps air circulating throughout the inside of the laptop. If you feel as if your laptop is getting hotter than normal, or you think you can hear bearings in the fan starting to struggle, it may be time to replace the fan. If you identify with either of these issues, refer to this guide to remove and replace the fan in your Lenovo G50-80 80E5.

The laptop will need to be disassembled to reach the fan. Make sure the laptop is powered off and disconnected from any external power sources such as the laptop's charger.

  1. NOOcCyHBN1Ed3Pq2

    • Place laptop on a flat surface with the back cover facing up and the hinges facing you.

  2. HrWB5Qo2WM6YL2ti
    HrWB5Qo2WM6YL2ti
    RDTHBdVZRAwbXEp2
    STt1XTYUjR5F4iQr

    • Slide the tab positioned on the right side to the right.

    • You will know this has been done correctly when you can see the red surface beneath the tab.

  3. PvnQPfH4VOT1ulc3
    PvnQPfH4VOT1ulc3
    NZIApX6VBpXLBDcj
    frKMgIqAyfUfKnYL

    • Move the left tab to the left to release the battery.

    • You will hear an audible 'click' and see the battery separate from the rest of the laptop.

  4. TKHxYLvAsN6b4wDJ
    TKHxYLvAsN6b4wDJ
    OiXyU2OZPqqLhSWV
    xu1tfYJVgcmYdQKF

    • Hold the battery at the top seam between it and the laptop.

    • Roll the battery towards yourself.

    • Lift the battery out of the laptop.

  5. B22m2tWFREieOPWM
    B22m2tWFREieOPWM
    XaxSQlUxU6NV2JBj

    • Remove the three screws securing the outer cover of the laptop using a Phillips #0 screwdriver.

  6. NoD6rqIr2yRvZIWu
    NoD6rqIr2yRvZIWu
    fYAffcnY6Syk2KPk

    • Slide the cover away from the hinges and lift the panel off.

  7. o2oMwHmYyG6KPEo3

    • Rotate the laptop so that you are positioned over the fan.

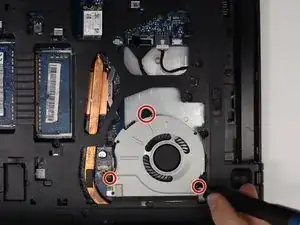

  8. iKUMmiEvKGS1TVcC

    • Remove the three 6 mm screws securing the fan using a Phillips #00 screwdriver.

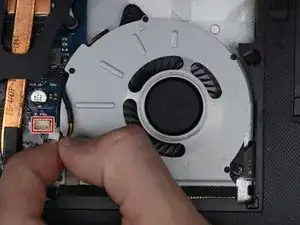

  9. jGK51GsfC22dq5Ik

    • Unplug the cable from the tri-color end connected to the motherboard.

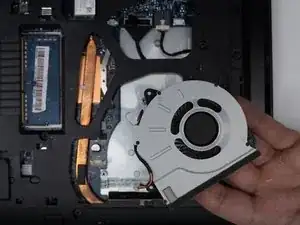

  10. iReFFdogkqSrl61h

    • Remove the fan from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
