Lenovo G50-80 80E5 Power Supply Jack Replacement

Geschrieben von: Victor
  • Kommentare: 8
Lenovo G50-80 80E5 Power Supply Jack Replacement

Schwierigkeitsgrad

Moderate

Schritte

30

Zeitaufwand

45 Minuten

Einleitung

Disassembly of the laptop is required to remove the power jack.

  1. NOOcCyHBN1Ed3Pq2

    • Place laptop on a flat surface with the back cover facing up and the hinges facing you.

  2. HrWB5Qo2WM6YL2ti
    HrWB5Qo2WM6YL2ti
    RDTHBdVZRAwbXEp2
    STt1XTYUjR5F4iQr

    • Slide the tab positioned on the right side to the right.

    • You will know this has been done correctly when you can see the red surface beneath the tab.

  3. PvnQPfH4VOT1ulc3
    PvnQPfH4VOT1ulc3
    NZIApX6VBpXLBDcj
    frKMgIqAyfUfKnYL

    • Move the left tab to the left to release the battery.

    • You will hear an audible 'click' and see the battery separate from the rest of the laptop.

  4. TKHxYLvAsN6b4wDJ
    TKHxYLvAsN6b4wDJ
    OiXyU2OZPqqLhSWV
    xu1tfYJVgcmYdQKF

    • Hold the battery at the top seam between it and the laptop.

    • Roll the battery towards yourself.

    • Lift the battery out of the laptop.

  5. B22m2tWFREieOPWM
    B22m2tWFREieOPWM
    XaxSQlUxU6NV2JBj

    • Remove the three screws securing the outer cover of the laptop using a Phillips #0 screwdriver.

  6. NoD6rqIr2yRvZIWu
    NoD6rqIr2yRvZIWu
    fYAffcnY6Syk2KPk

    • Slide the cover away from the hinges and lift the panel off.

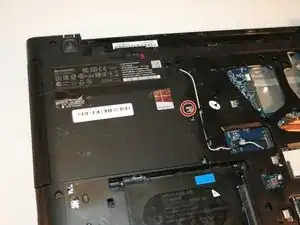

  7. W6OQfYQQXxjK5iKv
    W6OQfYQQXxjK5iKv
    GYMss3mhLaJLAIVw

    • Locate the CD drive.

    • Remove the single #00 Phillips 5.5 mm screw on the centermost side of the drive.

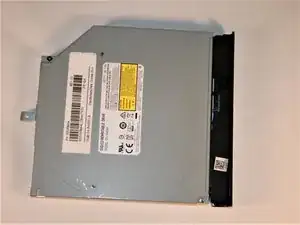

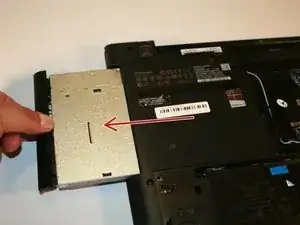

  8. XOLogMZiSBB6wfMk
    XOLogMZiSBB6wfMk
    oVPIZl5wdXSXrJd3

    • Move the drive towards the outside of the laptop to remove the connector.

    • Pull the drive out of the laptop.

  9. ZIBFSMrHEvYJ2dIx
    ZIBFSMrHEvYJ2dIx
    Do2iEfQtnrjYq3Ox
    OB4xHYWyGEK1lajb

    • Locate the 3 screws on the bottom, securing the keyboard.

    • One Screw will be located under Lenovo sticker. Break sticker to gain access to screw.

  10. ExecNkEKWmVpSb1I

    • Starting on side, gently pry up using spudge.

  11. nAUhiQmwHcLQnUd2
    nAUhiQmwHcLQnUd2
    eYOYhMBI3owkCiOw

    • Continue prying around top of keyboard

  12. sosIRJQcWTuH2QWM

    • Once the top of keyboard is loose, gently lift up

  13. A1gGSKsObgP2NULJ

    • lift up bottom of keyboard slightly, to access keyboard ribbon

  14. QYpjJh2gtsdBDTqo

    • Using tweezers, lift up clip to remove keyboard ribbon cable.

    On some laptops the colors for the clips are reversed. You should lift up the inner piece. Took me 15 mind to figure out

    Ikaunieksplay -

  15. af3j1BmVVAWVrDLs
    af3j1BmVVAWVrDLs
    lDCAYdLXCjdOVABr

    • Keyboard ribbon cable removed

    • Once ribbon is removed, keyboard can be lifted out

  16. ghGHoZBq5OqVGjIh

    • Remove wifi wires by lifting up

    The reattachment of these wires is tricky and not immediately obvious. The wires clip to the card by a small circular attachment male on the card female on the wire. I used a small flat head electrical screwdriver to push down the wires onto the card.

    Stephen Connell -

  17. nfucpkAVZCmXuvm3

    • locate power and monitor cable on bottom side next to fan

  18. YqcLCShoDTLqLQeJ

    • remove power cable with tweezers by gently pullying

  19. hLxuUfYDgWVnendI

    • remove monitor cable by gently pulling on tab straight up

  20. HWZXOx1Db5QnVECh

    • Monitor and power cable disconnected

  21. AeYheMJttSGQaAmN

    • Disconnect the fan wires from the motherboard by lifting upwards

  22. MJhRmHQsHKMsLCq1
    MJhRmHQsHKMsLCq1
    3mCTAyya2ScV1IvJ
    ta1n1acJZcsxGcyU

    • Locate the 3 screws holding fan in place

    • Remove 3 screws

    • fan should lift out of place

  23. xGFi3TXxZalhkDRC

    • lift clip to remove ribbon cable for think pad.

  24. 1bJdRRXJXYA1fm1l
    1bJdRRXJXYA1fm1l
    UyfOWlq4D4LmFH5g

    • lift clip to remove power button ribbon cable.

  25. 3YYHk4squqWcIUgY

    • Begin by locating screws on bottom panel

    Missing step. The hard drive needs to be removed. 4 screws then slide back (to left in above image)

    Stephen Connell -

  26. l1UeYRKdjDIBBZGP

    • Remove screws using a 001 phillips screw driver.

  27. NDAjLpspA3JAnQ6Y
    NDAjLpspA3JAnQ6Y
    RfXtp5JKBMMKgIHi
    Pxo3KQ4aNFvXttFC

    • Once screws are removed, begin by gently prying up in one corner using a spudge

    • Continue to center and then around to opposite side.

    • once all sides have been pried open, lift top half off

  28. oSQt6g355dVeOybP

    • Top covered removed

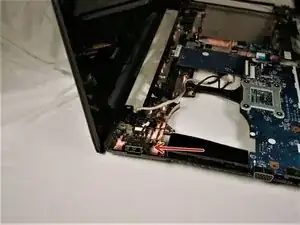

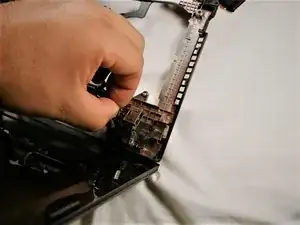

  29. wf33MiZ3mPAdGvCw
    wf33MiZ3mPAdGvCw
    R1D4TVRcgyiNROXZ

    • lift up power jack and remove from holding tabs

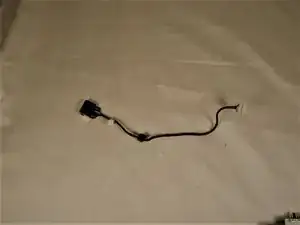

  30. lWtKRlAP3SrSJn5V

    • power jack removed

    Hi!

    Great instructions for the disassembly.

    I’m trying to change the power socket for a new one and I would like to know how much long the wire has to be, first of buying it. Thank you!

    agusmos -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Victor

Mitglied seit: 17/10/17

1192 Reputation

4 Kommentare

TY TY fixed myself for 7$

manx_44709 -

Should the new Power Jack look exactly the same as the manufacturer one? My original Power Jack has prongs but the new one does not and the laptop will not power on.

gifts.fromgod -

Does this require soldering as well ?

Explorer Gurus -

I would not rate this as a difficult task and I managed to complete the dismantle and reassemble within the 45 Minutes, Overall a pretty good description. The hardest bit was reattaching the wifi wires. I found I did not need tweezers and used a small electrical flat head instead of a spudge. No soldering or other tools. Having bought a new battery and charger (circa $50) the replacement part ($5) and this guide solved the issue. @gifts.fromgod my part was not identical (colour and size of the mid wire join) but fitted more or less and works a charm.

Stephen Connell -
