Lenovo G580 Battery Replacement

Geschrieben von: Kyle McNeil
  • Kommentare: 0
Lenovo G580 Battery Replacement

Schwierigkeitsgrad

Very easy

Schritte

3

Zeitaufwand

45 Sekunden

Einleitung

Batteries lose their ability to hold their charge over long periods of use. This results in the user needing to replace the battery to maintain sufficient battery life. This guide requires no tools.

  1. TFgXXcgxRiR6EYDV

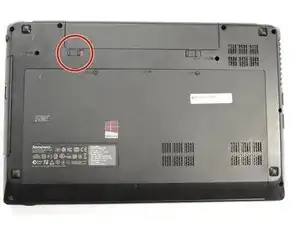

    • Make sure your laptop is oriented backside facing upward as seen in the image.

    • Locate the battery lock switch.

  2. ESyKr5GuJQide2TU
    ESyKr5GuJQide2TU
    AOTcZE1Brf3iE4Rf

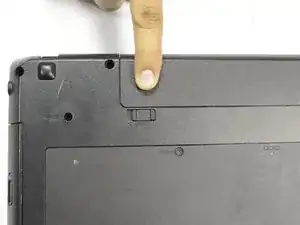

    • Unlock the battery by moving the switch to the right.

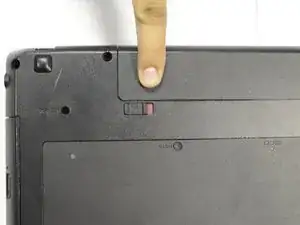

    • The switch is unlocked when the RED of the switch is present.

  3. QBiphwwikOUEBKVo
    QBiphwwikOUEBKVo
    Y5eVlIKFCphHx2SL

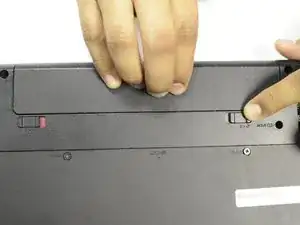

    • Hold the release switch down.

    • At the same time, push the battery upwards to remove the battery.

    • Pulling on the battery while the battery is locked will damage the laptop. Ensure the lock is properly disengaged.

Abschluss

To reassemble your device, follow these instructions in reverse order.
