Lenovo G70-80 RAM Replacement

Geschrieben von: Alexis Buford
  • Kommentare: 0
Lenovo G70-80 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 - 6 Minuten

Einleitung

Outline what you are going to teach someone how to do.

  1. HSB1xKHDYVmKCctX

    • Turn off the computer.

    • Set the computer upside down with the back facing up.

  2. B5wgDJOISGBOURFt
    B5wgDJOISGBOURFt
    LiCDuuNSmWoXikYM

    • Located directly below the bottom plate will be two switches near where the battery is located.

    • With the battery facing you, slide the battery switch on the right side of the laptop towards the right.

    • To ensure the switch on the right is unlocked, look for a red indicator next to the switch.

  3. hIPGrx6KuGLvTcId
    hIPGrx6KuGLvTcId
    JFjYr6iiQQZDfVZb

    • Slide the left battery release switch to the left.

    • While holding the switch to the left, lift the battery to remove it from the computer.

  4. GXAlxBoAY5EcKAG1
    GXAlxBoAY5EcKAG1
    iAofRP3HwI6SCAE1

    • Remove the battery.

  5. 1A3dIX6vNT3v5oFW
    1A3dIX6vNT3v5oFW
    HLYf3LIA1Pd1HRLj
    RmKXcAbgOPjQ5HYV

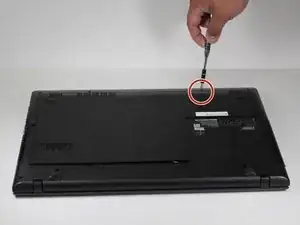

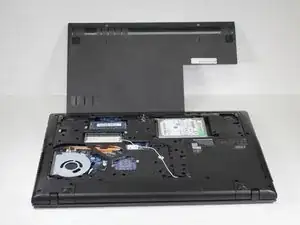

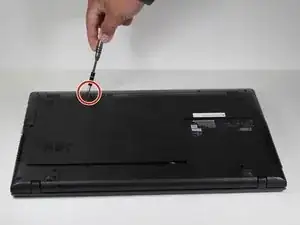

    • Remove the placeholder screws and pull off the backplate.

  6. qGuRLMDtOtumRM1R
    qGuRLMDtOtumRM1R
    MliJFIGOBYJHapI6
    WOOMykncUNNeXAdf

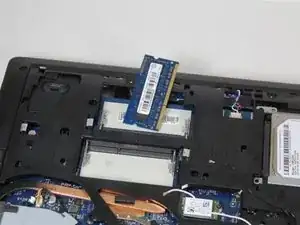

    • Carefully pull the two metal retaining clips away from the sides of the RAM module.

    • As the clips release, the RAM module should pop up at an angle.

    • Remove the RAM from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
