Lenovo G780 Heat Sink Replacement

Geschrieben von: Riley Griffin
  • Kommentare: 0
Lenovo G780 Heat Sink Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

The heatsink of your laptop may be faulty if you notice your fan is running more than normal, or if your laptop is getting excessively hot during normal use.

  1. lr2tAAbgXKfxxjYR
    lr2tAAbgXKfxxjYR
    PIOJujZBJOywg5yV

    • Turn off the computer.

    • Slide the battery-lock switch on the bottom of the laptop to the unlocked position.

  2. LWoO2WEAYOLAVubg

    • Hold the battery release switch in the unlocked position and remove the battery.

  3. ZuVMVSVWHeT6KumL
    ZuVMVSVWHeT6KumL
    jZaMWPH11hKYSBX6
    vvagUcE4POgjLMGs

    • Remove the six 9 mm screws from the back panel with a Phillips #0 screwdriver.

    • Save these screws.

    • Remove the back plate.

  4. JFbkeP1kVDhR6mWy

    • Use a Phillips #0 screwdriver to detach the fan by removing the two black 9 mm screws and the single silver 4 mm screw that is securing it to the motherboard.

    • Save these screws.

  5. PBsDkNpQn4nqRjGr
    PBsDkNpQn4nqRjGr
    lGCMXY1SVRTEkpUH

    • Carefully disconnect the fan cable from its socket on the motherboard.

    • The fan should now be completely free from the laptop motherboard and chassis.

  6. AlIQA5oS5kBA2Cnf
    AlIQA5oS5kBA2Cnf
    cTRyiZf1A1CHrNNY
    DP2rjqmPyKSexniS

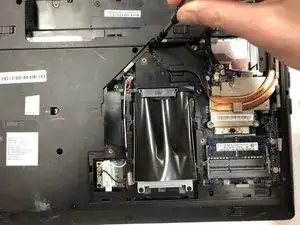

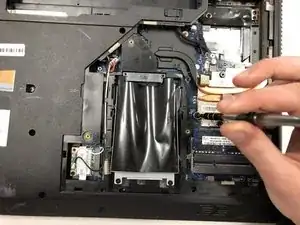

    • Remove three 7mm spring loaded screws using a Phillips #1 screwdriver.

    • Remove these two 4 mm screws using a Phillips #1 screwdriver.

  7. cePceZhTQjpVW5Or
    cePceZhTQjpVW5Or
    H5SJGPIMsfGtrmSI

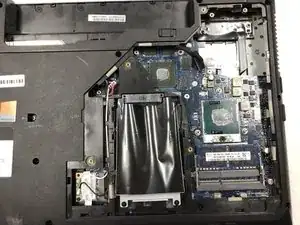

    • The heat sink needs to be rotated counter-clockwise slightly to allow space for removal.

Abschluss

To reassemble your device, follow these instructions in reverse order.
