Lenovo G780 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

4 - 10 Minuten

Einleitung

If you wish to upgrade or replace RAM on the Lenovo G780, follow this guide.

  1. lr2tAAbgXKfxxjYR
    lr2tAAbgXKfxxjYR
    PIOJujZBJOywg5yV

    • Turn off the computer.

    • Slide the battery-lock switch on the bottom of the laptop to the unlocked position.

  2. LWoO2WEAYOLAVubg

    • Hold the battery release switch in the unlocked position and remove the battery.

  3. ZqrrOQwiKrpJYanP

    • Using a #0 Phillips screwdriver, remove the six 9mm panel screws from the bottom of the device.

  4. xgZSZrh2UjtvRUca

    • Remove the back panel.

  5. o3ZELQqF2BrfjoEN
    o3ZELQqF2BrfjoEN
    ZAbNXPAjSAWKDS4y
    MuiOQLRs3MdrEFKs

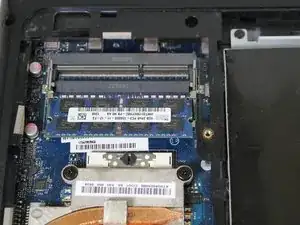

    • Push the two locks outwards to release the RAM.

    • Carefully pull the RAM module from its socket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
