This guide will illustrate how to replace a malfunctioning screen on the Lenovo G780.

  1. lr2tAAbgXKfxxjYR
    lr2tAAbgXKfxxjYR
    PIOJujZBJOywg5yV
    • Turn off the computer.

    • Slide the battery-lock switch on the bottom of the laptop to the unlocked position.

  2. LWoO2WEAYOLAVubg
    • Hold the battery release switch in the unlocked position and remove the battery.

  3. osiN5HM3SS3NwRoL
    osiN5HM3SS3NwRoL
    PS4DaQTTaFYBfqKe
    • Using the metal spudger, peel back the adhesive-backed bumpers on the bottom left and right corners of the screen.

  4. xTGScASIEVC6iJnC
    xTGScASIEVC6iJnC
    EYUefbHncSQyVsKM
    LxLKeQUQh3JeohZt

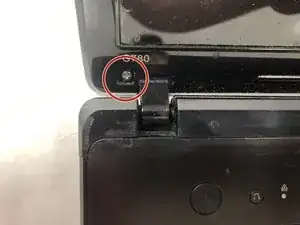

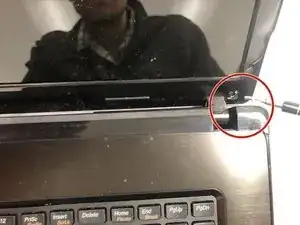

    • Using a Phillips #1 screwdriver, remove both 5.5mm screws from the corners of the screen.

  5. ARHvZc51byWEkSMQ
    ARHvZc51byWEkSMQ
    hoV4Nql3dwumUqhb
    EIxI1cqAat6yNeGj

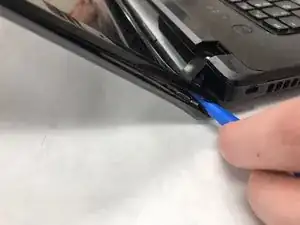

    • Using an iFixit opening tool, start prying on the top face cover on the screen by applying pressure near the bottom of the screen.

    • Once the face cover has started to come away from the screen, begin pulling away with both hands until the whole face cover has been removed from the screen.

    • Be careful not to break the thin plastic cover.

  6. CHTXkArRB1Z5WEnM
    CHTXkArRB1Z5WEnM
    bVrxMk6V5uWKjLSr
    JtiYVuYS31OuYnIB
    • Remove the four 8.5mm screws on the corners of the screen that connect the screen frame to the back cover.

  7. URwOX1bUtLBLmmTC
    URwOX1bUtLBLmmTC
    QNEamsIwBJNtLhWQ

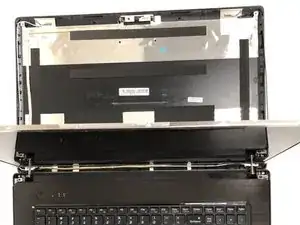

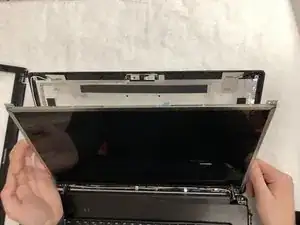

    • With the back cover being removed from the screen frame, the back cover can be set aside.

  8. PVre4RsZYarQQslu
    PVre4RsZYarQQslu
    1vtgCVHcCb1qwUFk
    bJWrHSSPP5nOFNBd

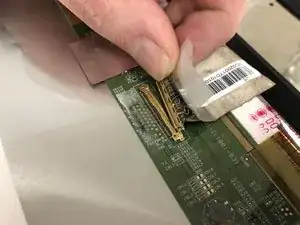

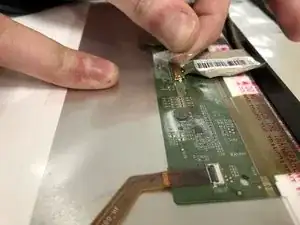

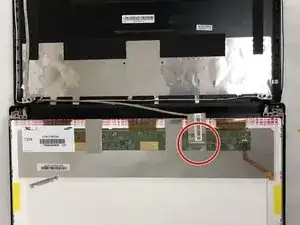

    • Carefully remove the clear adhesive tape holding the cable down, being careful not to damage the small wires under the tape.

    • Once the tape has been removed, the ribbon connector will pull away from the back of screen.

  9. HCeXqnVXCmMaVoA2
    HCeXqnVXCmMaVoA2
    Jqw6KxLvHOfF24rn
    2MDLYiRPGvmehOVv

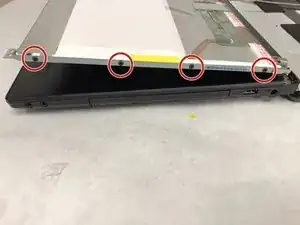

    • Remove the eight, 3mm screws around the screen frame. There will be four on each side of the screen frame.

    • With the screws removed the screen will be free to be lifted away from the screen frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
