Lenovo Golden Warrior S8 Display Replacement

Geschrieben von: Marco Conti
  • Kommentare: 0
Lenovo Golden Warrior S8 Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

  1. Ht63hKGBrERtn43g

    • Remove the back cover and the battery

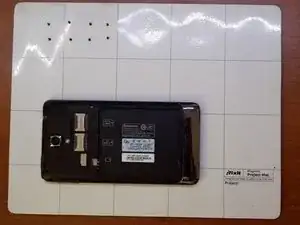

  2. 2sQIKKCqryYMxLjr

    • Remove the eight screws

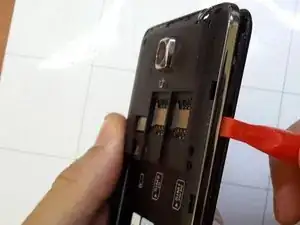

  3. stKMilNFgiiKweGQ
    stKMilNFgiiKweGQ

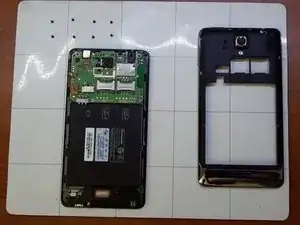

    tHINTZDooQTAsHOr

    • Carefully open the mid frame

  4. SnyMOLLxRfiJI32p
    SnyMOLLxRfiJI32p

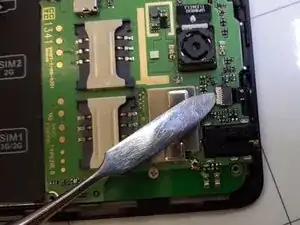

    POGAKliJ1BQPouME

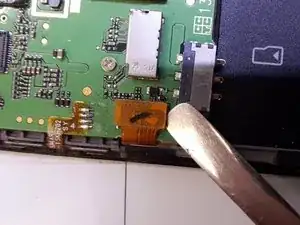

    r3UwVnQtxZHhNheJ

    • Remove the flats

  5. JmgvXoQAhxLxNSUt
    JmgvXoQAhxLxNSUt

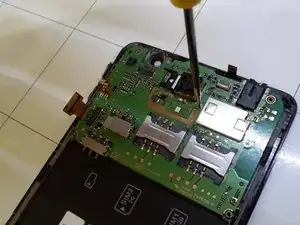

    YTvr2EVVlSOTwypd

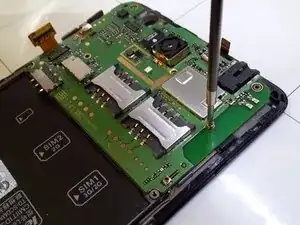

    buPACRRHdiaqOh5l

    • Remove the three screws

  6. 4PY1JhsgCZBq6Ujy
    4PY1JhsgCZBq6Ujy

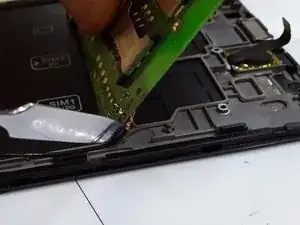

    DtBqHNiZyusVkOns

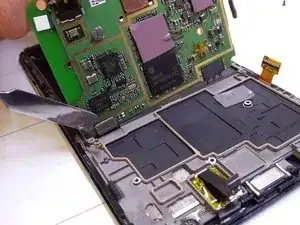

    dYyNTdZDloVT4E5Y

    • Remove the flat power on

    • Remove the antenna

    • Remove the flat of the buttons below

  7. pgbZRAqZIx2mvGhN
    pgbZRAqZIx2mvGhN
    lwIaaTFgvbYTQjPd

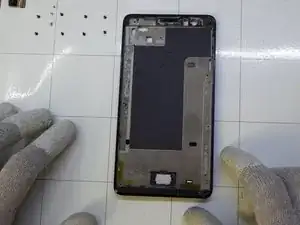

    pUQAAFsgKNnrrC5k

    • Heat the front

    • Carefully detach the front from the middle frame

Abschluss

To reassemble your device, follow these instructions in reverse order.
