Lenovo IdeaCentre K410 CPU Replacement

Geschrieben von: Timothy Grebe
  • Kommentare: 4
Lenovo IdeaCentre K410 CPU Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 20 Minuten

Einleitung

  1. UBTUMVnaBEja4ZX4

    • Lay the computer down on its side as shown.

    • Remove the two 14mm screws shown. The screws are loose enough to unscrew with your hands.

  2. QnWISHe21gjfTKhK

    • Gently slide the side panel straight back and remove from the computer.

  3. F14RbPAX6ElMOtlw

    • Using the Phillips #00 Precision screwdriver, unscrew the four 12mm screws that hold the fan in place.

    • Be careful not to strip the screws.

    Fan does not need to be removed from the heat sink.

    Ken -

  4. Ktk5fINDdUYM51Du

    • Unplug the fan from the motherboard by gently pulling out the single plug. Then lift the fan up and out of the computer.

  5. CSyJYjrHsogqnvwp

    • Loosen the four screws that hold the heat sink in place using a Phillips #2 screwdriver.

    • The screws do not come all the way out of the heat sink

    • Pull the heat sink straight up to remove it.

    Loosen these four screws with the fan attached. Unplug the fan from the motherboard and remove the heat sink / fan as one component.

    Ken -

  6. JOdgjSj2jeQQGTYy
    JOdgjSj2jeQQGTYy
    wEjUbe3TTRUR2iIA

    • Remove the 2 8mm screws holding the CPU cover using a Torx #20 screwdriver.

    • Remove the 11 mm screw using a Torx #20 screwdriver.

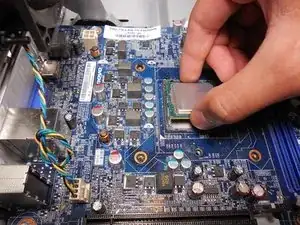

    • Remove the cover and remove the CPU by gently pulling upward.

    Why not just lift the lever that allows the CPU cover to open to gain access to the CPU? Removing the cover is not necessary.

    Ken -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Timothy Grebe

Mitglied seit: 20/10/14

1565 Reputation

Ein Kommentar

Why would you remove the fan and the CPU fixation bracket when you could just remove the heatsink by unscrewing it and then lift up the bracket lever...

alphaLONE -
