Lenovo IdeaCentre K410 Heat Sink Replacement

Geschrieben von: Timothy Grebe
  • Kommentare: 2
Lenovo IdeaCentre K410 Heat Sink Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

  1. UBTUMVnaBEja4ZX4

    • Lay the computer down on its side as shown.

    • Remove the two 14mm screws shown. The screws are loose enough to unscrew with your hands.

  2. QnWISHe21gjfTKhK

    • Gently slide the side panel straight back and remove from the computer.

  3. F14RbPAX6ElMOtlw

    • Using the Phillips #00 Precision screwdriver, unscrew the four 12mm screws that hold the fan in place.

    • Be careful not to strip the screws.

    Fan does not need to be removed from the heat sink.

    Ken -

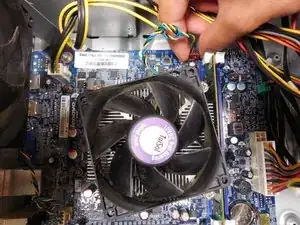

  4. Ktk5fINDdUYM51Du

    • Unplug the fan from the motherboard by gently pulling out the single plug. Then lift the fan up and out of the computer.

  5. CSyJYjrHsogqnvwp

    • Loosen the four screws that hold the heat sink in place using a Phillips #2 screwdriver.

    • The screws do not come all the way out of the heat sink

    • Pull the heat sink straight up to remove it.

    Loosen these four screws with the fan attached. Unplug the fan from the motherboard and remove the heat sink / fan as one component.

    Ken -

Abschluss

To reassemble your device, follow these instructions in reverse order.
