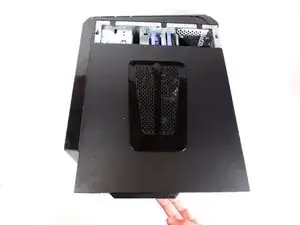

Lay the computer down on its side as shown.
-
Remove the two 14mm screws shown. The screws are loose enough to unscrew with your hands.
-
-
-

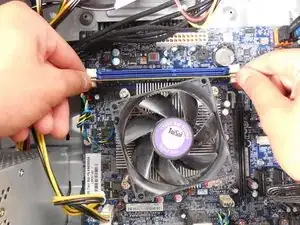

Push down on the white clips on both sides of the memory module to release it.
-
Gently pull up on the memory module to remove it from the unit.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
When inserting the memory module, make sure that the notch on it aligns correctly with the key on the memory connector. Push the module straight down into the connector until the retaining clips close.
