Lenovo IdeaCentre K410 USB 3.0 Expansion Card Replacement

Geschrieben von: Timothy Grebe
  • Kommentare: 1
Lenovo IdeaCentre K410 USB 3.0 Expansion Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

  1. UBTUMVnaBEja4ZX4

    • Lay the computer down on its side as shown.

    • Remove the two 14mm screws shown. The screws are loose enough to unscrew with your hands.

  2. QnWISHe21gjfTKhK

    • Gently slide the side panel straight back and remove from the computer.

  3. isbUjWEpq5TRPmWK

    • With your hands remove the 14mm screw that holds the cover on the back panel.

    • Gently pull the flap back to expose the expansion card retaining screw.

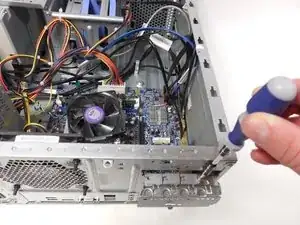

  4. pU3ADOoHunHsXn6V

    • Use the Phillips #2 to remove the 8mm screw that holds the USB 3.0 Expansion Card in place.

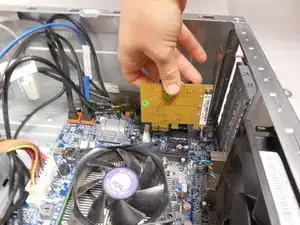

  5. CxLcHm2m5MYfQDiO

    • With moderate force, pull straight up on the expansion card to remove it from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
