Lenovo IdeaPad 100s-14IBR Battery Replacement

Geschrieben von: Mohammed Younis
  • Kommentare: 1
Lenovo IdeaPad 100s-14IBR Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide shows how to remove and replace the battery found in the Lenovo IdeaPad 100S-141BR.

  1. MYAlE1J5L6LIYFNW

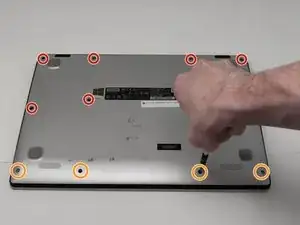

    • Be sure to power off and unplug your device before you begin your repair.

    • Remove the eight 4mm PH00 screws.

    • Remove the four 2mm PH00 screws.

    There are only 2 pieces of the 2mm screws (bottom left and bottom right)

    Engin Isleyen -

  2. FmWrPydoVEeHtY3I
    FmWrPydoVEeHtY3I
    VHfMOcIWUXnlrlKE

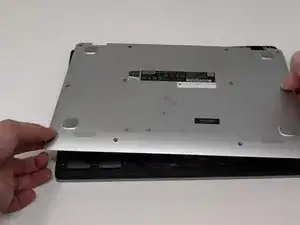

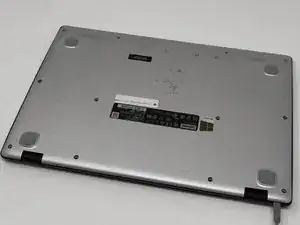

    • Use the nylon spudger to loosen the back cover from the back of the device.

    • You may hear a bit of a snapping sound, but this is normal.

  3. TRG5I6cPunZtAwAX
    TRG5I6cPunZtAwAX
    KSrb3MBLONJCZrMF

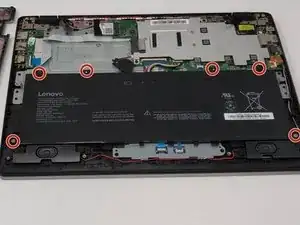

    • Remove six 4mm Phillips #00 screws.

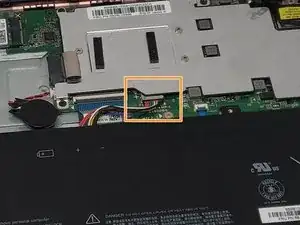

    • Pull the battery connector parallel to the motherboard to disconnect the battery from the motherboard.

  4. VeoWFnpnkFWFXIuy
    VeoWFnpnkFWFXIuy
    1KAxfiI5BUFVvsKf

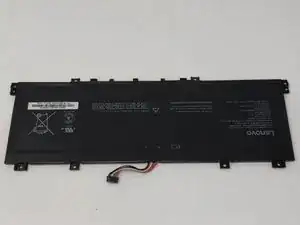

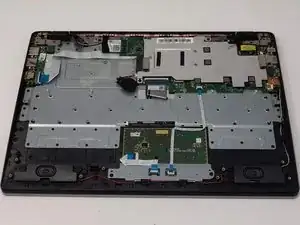

    • Use a nylon spudger to pry the battery up and out of the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
