Lenovo IdeaPad 100s-14IBR Hard Drive/ Solid State Drive Replacement

Geschrieben von: Mohammed Younis
  • Kommentare: 5
Lenovo IdeaPad 100s-14IBR Hard Drive/ Solid State Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

2 Minuten

Einleitung

This guide will help the users fix issues with storage in the Lenovo IdeaPad 100S-141BR.

  1. mYPQHekRJ1kFsOLM

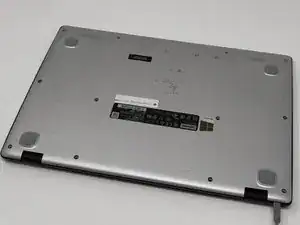

    • Remove the eight 4mm PH00 screws.

    • Remove the four 2mm PH00 screws.

  2. JHh5jaQp1dPQu5sM
    JHh5jaQp1dPQu5sM
    DJlFv32CYGjGLfhV

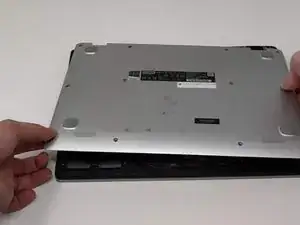

    • Use the nylon spudger to loosen the back cover from the back of the device.

    • You may hear a bit of a snapping sound, but this is normal.

  3. 2OSqVlcTUwyLVxeK

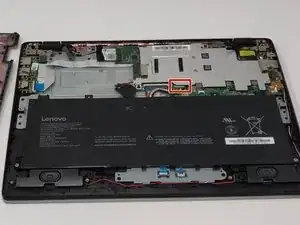

    • For safety reasons, disconnect the wires connecting the battery to the motherboard with a nylon spudger.

  4. CiuIQih4bTGVyQQj

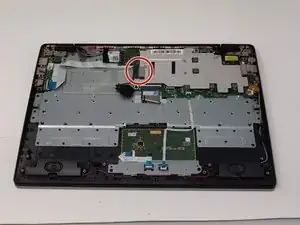

    • Remove the solid state drive.

    Hur kan man bara göra en halvdan instruktion.

    För mig var denna sida viktig, men det som visas här ge mig ingen hum om var sitter hårddisken, hur går man tillväga att byta hårddisken.

    Ska ni nu hjälpa oss, gör det full ut.

    stengrnbergabf@outlook.com Stort behov av att få veta var den sitter. Har samma dator som på bilderna.

    puv -

    Hur kan man bara göra en halvdan instruktion.

    För mig var denna sida viktig, men det som visas här ge mig ingen hum om var sitter hårddisken, hur går man tillväga att byta hårddisken.

    Ska ni nu hjälpa oss, gör det full ut.

    stengrnbergabf@outlook.com Stort behov av att få veta var den sitter. Har samma dator som på bilderna.

    puv -

    It seems like the last step could use a little more than just the connector circled. How does the connector connect? Is it just a lift up? Do I just pull on it? Do I need to be careful? Is it one of those "rocks 45 degrees diagonally to pull out" kind?

    How about which piece is the hard drive? The metal piece to the left or right? Is it underneath? Is it not in the picture and this is an empty connector. I feel like i was watching Basic Instinct and the end of the movie just kind of came out of nowhere.

    This is a good guide. With just a little bit more detail at the end, it could be GREAT!

    Andrew Mueller -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Mohammed Younis

Mitglied seit: 18/03/19

421 Reputation

2 Kommentare

WHAT DO i REPLACE THE ssd WITH ONCE REMOVED? I WANT TO UPGRADE TO A 1TB DRIVE. WHAT DO YOU SUGGEST FOR MY LENOVO 110S-141BR LAPTOP?

ROBERT GOFFINSKI -

I replaced with an ssd but the laptop is not recognizing it

Janet Zinabe -
