Lenovo IdeaPad 100s-14IBR Speaker Replacement

Geschrieben von: Bin Feng
  • Kommentare: 0
Lenovo IdeaPad 100s-14IBR Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

7 Minuten

Einleitung

This guide will help the users fix issues with the speakers found in the Lenovo IdeaPad 100S-141BR.

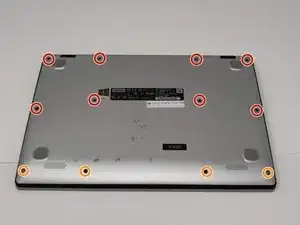

  1. FbBqrDCTgiitDT5k

    • Remove the eight 4mm PH00 screws.

    • Remove the four 2mm PH00 screws.

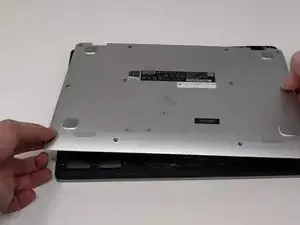

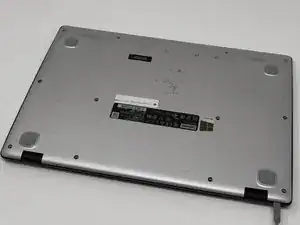

  2. dKQivPT4g5yWtoXD
    dKQivPT4g5yWtoXD
    XAnkRJcgf1Sk2IxL

    • Use the nylon spudger to loosen the back cover from the back of the device.

    • You may hear a bit of a snapping sound, but this is normal.

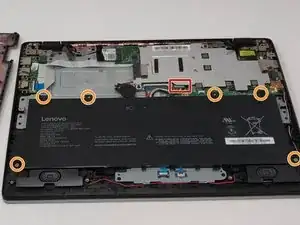

  3. i2WnTBbgBdG3EKVT

    • For safety reasons, disconnect the wires connecting the battery to the motherboard with the nylon spudger.

    • Remove the six 4mm Phillips #00 screws.

    • Remove the battery using the nylon spudger.

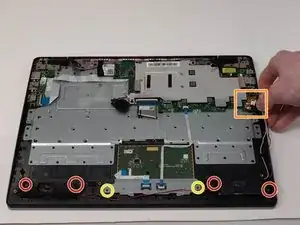

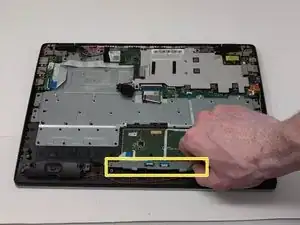

  4. CXFVZZSGrEuYlw2P
    CXFVZZSGrEuYlw2P
    dLoaoFjVugaZyUmF

    • Remove the four 2mm PH00 screws.

    • Unplug the speakers from the motherboard.

    • Remove the two 4mm PH00 screws from the metal shield on the trackpad.

    • Lift the metal shield up slightly, being very careful not to move the ribbon cables too much. Move the speaker cables out from under the shield.

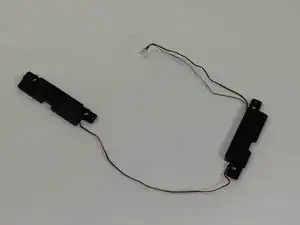

  5. TQQhSiFvZdStRjwp

    • Lift the speakers from the case being careful of the wires connecting them. Put them to the side.

Abschluss

To reassemble your device, follow these instructions in reverse order.
