Lenovo IdeaPad 100s-14IBR WiFi/ Bluetooth Card Replacement

Geschrieben von: Bin Feng
  • Kommentare: 0
Lenovo IdeaPad 100s-14IBR WiFi/ Bluetooth Card Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

3 Minuten

Einleitung

This guide will help the users fix issues with the WiFi/ Bluetooth card that is found in the Lenovo IdeaPad 100S-141BR.

  1. kdbEHQvaL2giId2K

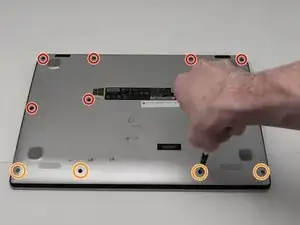

    • Remove the eight 4mm PH00 screws.

    • Remove the four 2mm PH00 screws.

  2. OMBNsNQ42HyhQqgj
    OMBNsNQ42HyhQqgj
    ARCfPWCJHTj1O6AQ

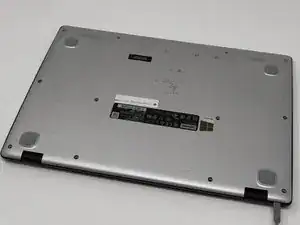

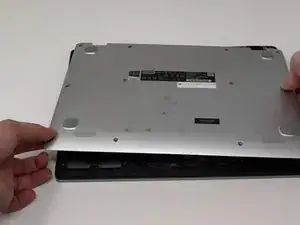

    • Use the nylon spudger to loosen the back cover from the back of the device.

    • You may hear a bit of a snapping sound, but this is normal.

  3. YLccFqqMyoHHShkR

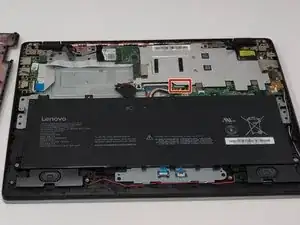

    • For safety reasons, disconnect the wires connecting the battery to the motherboard with the nylon spudger.

  4. hnxBMum1KKDWeLIj
    hnxBMum1KKDWeLIj
    Mar5CYpKFXKbtVDM

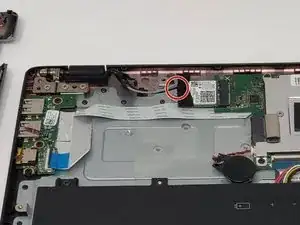

    • Remove the tape and unscrew the single 2mm PH00 screw.

    • Pull out the current WiFi/Bluetooth card, unplugging the two wires connected to it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
