Lenovo IdeaPad 110-15IBR Hard Drive Replacement

Geschrieben von: Saddam Alsinai

Kommentare: 4

Lenovo IdeaPad 110-15IBR Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

10 Minuten

Einleitung

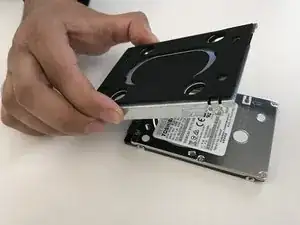

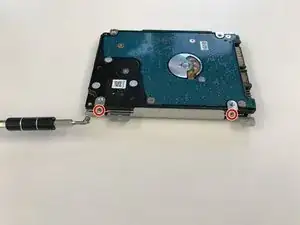

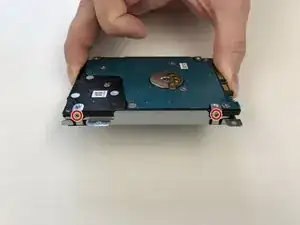

If your computer won't boot and is having hard disk/hard drive reading errors, follow this guide to replace it. The guide shows how to remove the back from the device, unscrew the battery from the device, remove the drive from the dock, and unscrew the drive housing.

Werkzeuge

Ersatzteile

Schritt 1

Before you proceed, make sure your computer is turned off and it's not connected to any power source. Before removing the drive, make a backup copy of all the information on it if possible. Never remove the drive while the system is operating or in suspend mode.

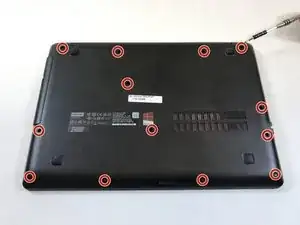

Place laptop with the bottom facing up. Using a Philip #1 screwdriver unscrew all 13 screws. Gently pry the back out using a plastic opening tool, starting from one of the corners.

There are 3 more screws after removing dvd/cd drive

Mazwi Mbuso - 26/10/18

Schritt 2

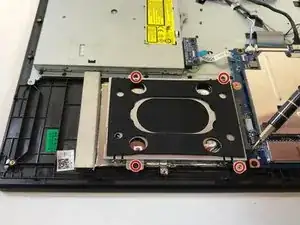

Using a Phillips #1 screwdriver, remove the four (5mm) screws holding the hard drive in place.

Schritt 3

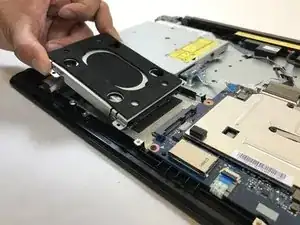

Do not lift hard drive straight up otherwise you might risk breaking the connection port.

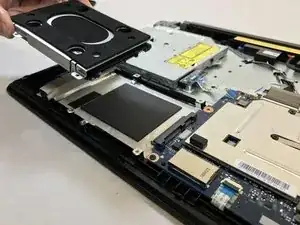

Gently slide the hard drive away and out out of the connection port.
