Lenovo IdeaPad 110-15IBR Optical Drive Replacement

Geschrieben von: Saddam Alsinai
  • Kommentare: 2
Lenovo IdeaPad 110-15IBR Optical Drive Replacement

Schwierigkeitsgrad

Very easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

This guide shows how to replace the optical drive for the Lenovo IdeaPad 110-15IBR. The guide shows how to remove the back panel, remove the screws holding the drive in place, and removing the optical drive from the docking port.

  1. NjAHSWWH6SlCAubO
    NjAHSWWH6SlCAubO
    F3p3J1GDmGKNTAKx

    • Before you proceed, make sure your computer is turned off and it's not connected to any power source.

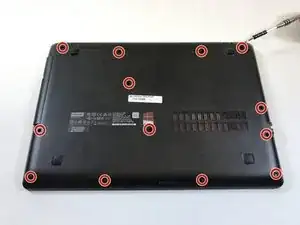

    • Using #1 Phillips screwdriver remove the 13 (9mmx6mm) screws holding the back.

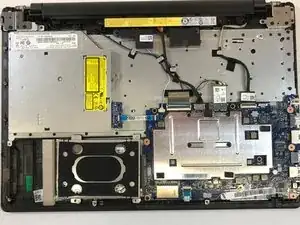

    • Gently pry the back off using a plastic opening tool, starting from one of the corners.

    How do we add the steps from the first time we removed the back from the computer? I keep forgetting what that is called but we need to use the same steps that we’ve used in previous guides.

    Madison Burke -

  2. YY2laABXJfpy6MHo

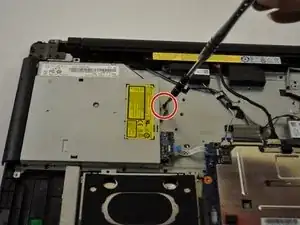

    • Using #1 Phillips screwdriver remove the 1 (9mmx6mm) screw holding the disk drive in place.

  3. poCQacPuOQeAulSj

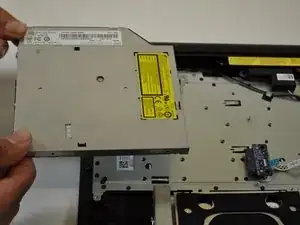

    • Pull the optical drive away from device to slide out of dock.

    • Careful not to pull the drive straight up or towards the device, otherwise damage might be done to the drive connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Saddam Alsinai

Mitglied seit: 18/10/17

663 Reputation

Ein Kommentar

I think there is an easier way to remove the optical drive. You only need to remove the screw in the middle near optical drive. After this you can pull out the otpical drive.

Max Härtwig -
