Einleitung

  1. f5pYaOieVqUF4wU1
    • Remove the two keyboard screws on the back of the device(the two on the same row)

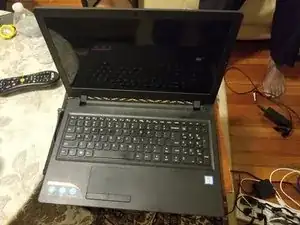

  2. dgOLSNypeWaRJxlQ
    • Insert a prying tool in the crack between the keyboard and frame. Start by the power button and go all the way round the keyboard.

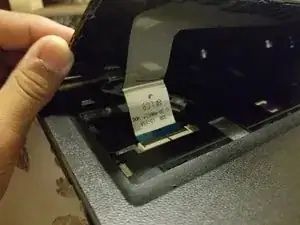

  3. DmSTWLalbFg4ueaV
    • Remover the ribbon cable and remove the keyboard afterward.

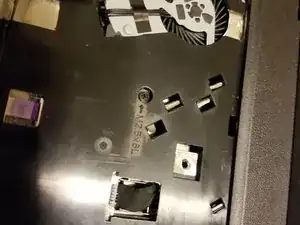

  4. fRquCrBZGXRUCmqL
    • After the keyboard is removed, remove the screw and the battery connector.

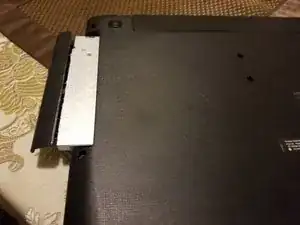

  5. gpGldDhaTATNSSEa
    • Remove the screw that is under the two keyboard screws and pull the disk drive out.

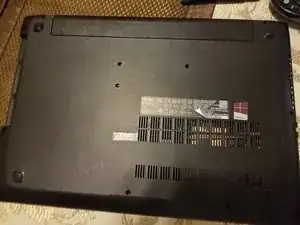

  6. RpDXfybI2NnJFxlj
    • Remove all of the screws on the outside edge of the bottom.

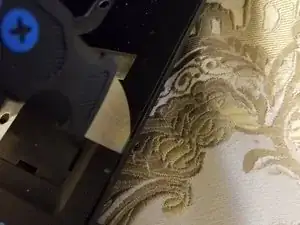

  7. koYfX1fdfnUf3yOV
    • Flip the laptop over and in the crack between the two case pieces slide a prying tool in between and follow the perimeter until the two pieces are separated.

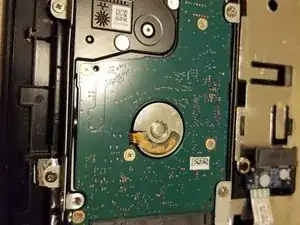

  8. HQcNayLxUwPiO2eJ
    • Remove the four screws securing the drive bay into the case.

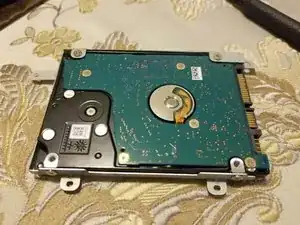

  9. t6KtRXDRYM4y6QJq
    • Remove the four screws the hold the metal cage onto the drive to separate them.

Abschluss

To reassemble your device, follow these instructions in reverse order.
