Einleitung
This guide will tell you how to replace your Lenovo 120s-14IAP battery. The battery is an easy component to replace that will give your laptop a long life. Be sure to be gentle with the connectors as they can easily break. Ensure the battery you are installing to replace the old one is not damaged.
Ersatzteile
-
-
Orient the laptop so the top is laying flat on your work surface.
-
Remove ten 1.5mm Torx T5 screws from the back of the laptop.
-
-
-
Insert the plastic opening tool or a Jimmy along the edge of the back cover and gently pry.
-
Run the tool all the way around the edge of the back cover and remove the back cover once it is no longer secure.
-
Remove the back cover.
-
-
-

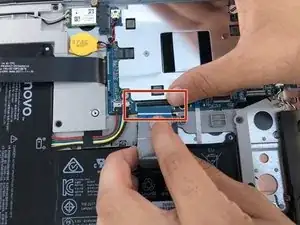

Use your fingers or a spudger to unlock the wide ribbon cable's ZIF connector.
-
Gently pull the connector from the battery side until it is fully detached from the daughterboard.
-
-
-

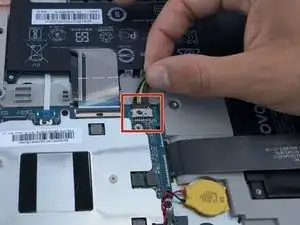

Gently pull the power harness away from the daughterboard until the connector is detached.
-
-
-

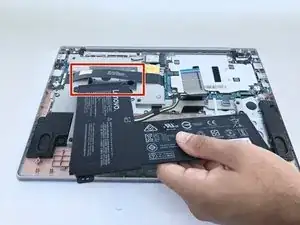

With the laptop oriented so that the long edge faces you and the battery is closest to you, carefully remove the battery by lifting on the longitudinal edge.
-
Pull the battery directly towards you and out from under the forward retaining strap.
-
To reassemble your device, follow these instructions in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
2 Kommentare
Thank you for showing exactly how to remove the battery connections, thanks!
Great guide. I may well need a new battery but would appreciate your comment. Battery shows charging but never gets above 0%
When I put a meter at the 2 red cables they show zero volts (even when computer on, and showing charging). Other wires are ~1.6v & 3.4v.
Could I have a faulty battery or something else?
