This guide demonstrates how to replace a faulty, damaged, or corrupt SSD in your Lenovo IdeaPad 3-15IGL05.
Hard drives are commonly a point of failure in electronic devices, and replacing one is a relatively simple procedure if done properly.
This replacement will take about 20 minutes, but it can be completed much faster than that if you know what you’re doing.
Ersatzteile
-
-

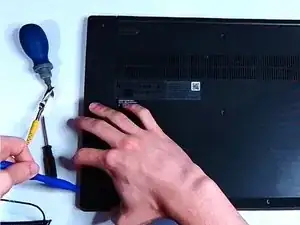

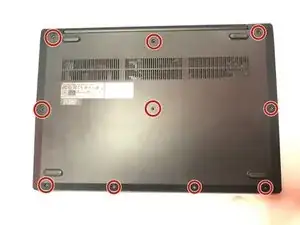

Wedge an opening tool in the gap between the bottom panel and chassis, and pry vertically around the perimeter until you hear a "pop" and the panel releases.
-
Lift the bottom panel up and off the chassis.
-
-
-

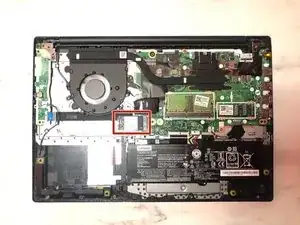

Locate the SSD at the bottom right corner of the fan.
-

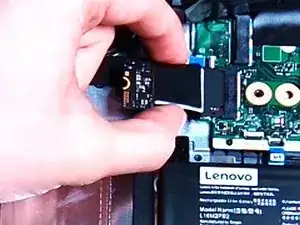

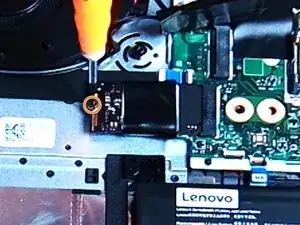

Use a Phillips #000 screwdriver to remove the single 3 mm screw securing the SSD.
-
To reassemble your device, follow these instructions in reverse order.
