Lenovo IdeaPad 300-17ISK Keyboard Replacement

Geschrieben von: Ammar Dodin
  • Kommentare: 2
Lenovo IdeaPad 300-17ISK Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

30 Minuten

Einleitung

If the keyboard has stopped working, or it's missing keys, follow the steps in this guide to replace it.

The battery for this device is not easily accessible and cannot be easily removed. Before you begin your replacement, be sure to disconnect the laptop from any power source. Additionally, we recommend that you drain the battery completely before you begin this replacement.

  1. qFJCBg1KlhZmZPpw

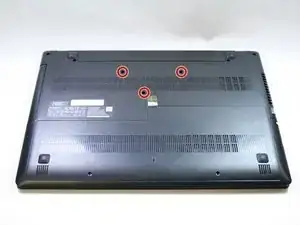

    • Unscrew the three 6mm Phillips #1 screws from the upper back cover.

  2. GvnkKvwEwoCkNhSH
    GvnkKvwEwoCkNhSH
    FHLJRjQXeLqiScow
    CSY1nCovJtNhnUtW

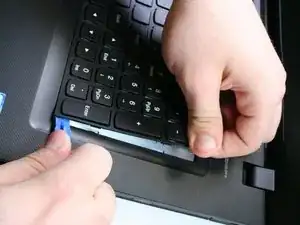

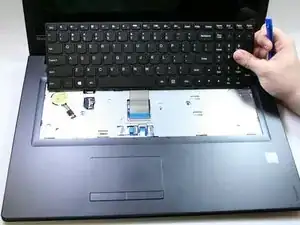

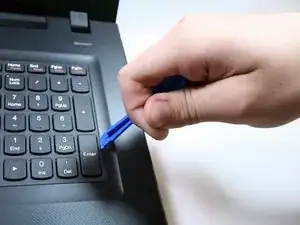

    • Place the opening tool's head under any edge of the keyboard.

    • Pull upwards to unsnap the keyboard.

    • Use your fingers and the opening tool to pop the keyboard out of its place.

    • You should't use any excessive force because the keyboard is still attached to the motherboard.

    I fount that it worked best to start at the “top” of the keyboard. The lower portion had tabs into the housing

    it -

  3. IaKbO2mJSbhMYGs6
    IaKbO2mJSbhMYGs6
    XAtnB5gvF5IRBxkA

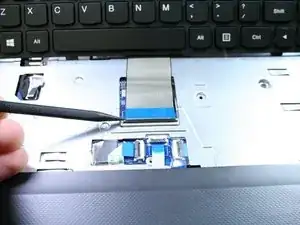

    • Push the keyboard connector latch upwards with the spudger.

    • You shouldn't use excessive force. The connector latch is very fragile.

    • The keyboard connector cable should slide right out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
