Lenovo IdeaPad 300-17ISK Wireless LAN Card Replacement

Geschrieben von: Ammar Dodin
  • Kommentare: 4
Lenovo IdeaPad 300-17ISK Wireless LAN Card Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

The WLAN card enables your laptop to access wireless internet networks. This guide shows you how to replace a faulty WLAN card.

The battery for this device is not easily accessible and cannot be easily removed. Before you begin your replacement, be sure to disconnect the laptop from any power source. Additionally, we recommend that you drain the battery completely before you begin this replacement.

  1. puwLFClFnHA1VKMA

    • Unscrew the two 7mm Phillips #1 screws that hold the bottom back plate in its place.

  2. bRX2MQKtOLaIhJIG
    bRX2MQKtOLaIhJIG
    PW35yFJInO34MniX

    • Place your hands at the bottom of the cover and slide it towards you.

    • Lift the cover up to remove it.

  3. dFAHjOdI4wI3XcZn

    • The wireless LAN card is located at the center of the laptop.

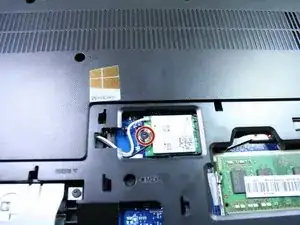

  4. KeXCuysvAl5ZbuKy

    • Unscrew the 3mm Phillips #1 screw that holds the WLAN card in place.

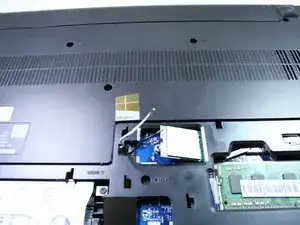

  5. hYGCGRIHoBcJp2Tm

    • Disconnect the black and white cables from the WLAN card.

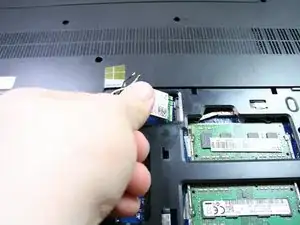

  6. Llokv32Eb5m1afNZ

    • Gently remove the WLAN card out of its slot.

    Easy . I would only add “use spudger to lift cables/replace cables onto card”.

    danlord65 -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Ammar Dodin

Mitglied seit: 19/01/17

1057 Reputation

3 Kommentare

Thanks Ammar, I thought my wifi card was jammed until I saw your post.

Turns out one of the cables (white one) was disconnected which lead to my wifi signal being non-existent. I plugged it in again and its working properly again.

Cheers

Vlottie

David Vlotman -

Thanks for say, white is 1

SABBIR HOSSAIN -

How to connect wire black and white to pin 1 and 2, plz help

SABBIR HOSSAIN -
